Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Microchip Technology
Series Automotive, AEC-Q100, dsPIC™ 33CK, Functional Safety (FuSa)
Package Tube
Core Processor dsPIC
Core Size 16-Bit
Speed 100MHz
Connectivity I2C, IrDA, LINbus, SPI, UART/USART
Peripherals Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT
Number of I/O 21
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
RAM Size 8K x 8
Supply Voltage - Operating 3V ~ 3.6V
Data Converters A/D 12x12b; D/A 3x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 28-UFQFN Exposed Pad
Supplier Device Package 28-UQFN (4x4)
Base Product Number DSPIC33
MSL Level 1 (Unlimited)
ECCN 3A991A2
HTSUS 8542.31.0001
Other Names 150-DSPIC33CK32MP102-E/M6
Standard Package 91
Win Source Part Number 986035-DSPIC33CK32MP102-E/M6
Ultra Librarian 3D Model Ultra Librarian DSPIC33CK32MP102-E/M6 CAD Model

Description

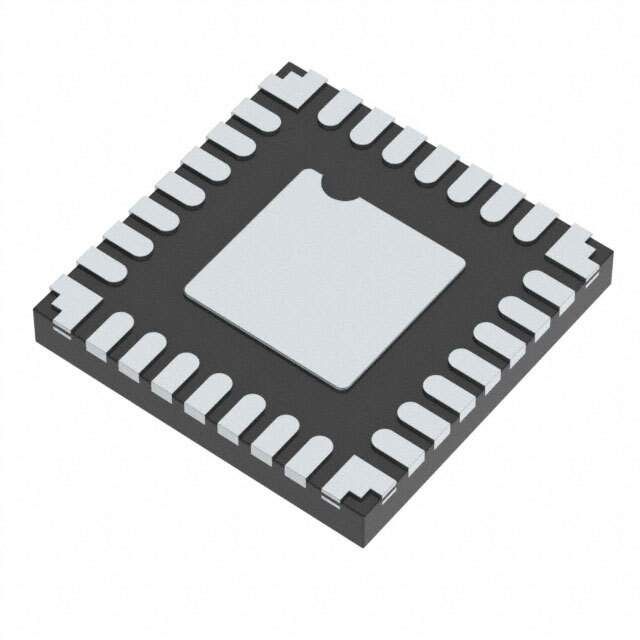

Product Overview: DSPIC33CK32MP102-E/M6

The DSPIC33CK32MP102-E/M6 is a cutting-edge digital signal controller (DSC) from the renowned semiconductor manufacturer, Microchip Technology. This product is designed to cater to the demanding needs of modern control applications, where efficient signal processing and high-speed control are paramount.

Key Features

  • High-Performance CPU: The DSPIC33CK32MP102-E/M6 is built around a high-performance 16-bit Digital Signal Controller (DSC) with a CPU speed of up to 100 MIPS (Million Instructions Per Second), enabling rapid execution of complex algorithms and control functions.
  • Memory: Equipped with 32 KB of flash memory and 8 KB of SRAM, this DSC provides ample space for application code and data storage, facilitating sophisticated applications without the need for external memory components.
  • Robust Peripheral Set: A comprehensive set of peripherals is integrated, including advanced analog features, multiple serial communication modules, and motor control PWMs, which are essential for a wide range of industrial, automotive, and consumer applications.
  • Functional Safety: With features designed to support functional safety standards, this DSC is suitable for applications that require stringent safety measures, such as automotive or medical systems.

Package and Temperature Range

The DSPIC33CK32MP102-E/M6 comes in a compact 28-pin QFN package, making it ideal for space-constrained applications. It operates within an extended temperature range of -40°C to +125°C, ensuring reliable performance across various environmental conditions.

Applications

This versatile DSC is suitable for a broad spectrum of applications, including motor control, power conversion, industrial automation, and Internet of Things (IoT) devices. Its powerful processing capabilities and rich peripheral set make it particularly well-suited for applications requiring advanced control algorithms and real-time response.

Development Support

Microchip Technology provides extensive development support for the DSPIC33CK32MP102-E/M6, including software libraries, development boards, and a comprehensive integrated development environment (IDE). This support accelerates the development process, from prototype to production, and helps engineers leverage the full potential of this advanced DSC.

In summary, the DSPIC33CK32MP102-E/M6 from Microchip Technology is a highly capable DSC that offers a perfect blend of performance, memory, and peripherals, tailored for sophisticated control applications that demand high-speed and precise signal processing.
