dSPIC33CH64MP503-I/M5 - Microchip Technology

The dSPIC33CH64MP503-I/M5 from Microchip Technology is a high-performance, 16-bit Digital Signal Controller (DSC) that blends the capabilities of a microcontroller with the computational throughput and data manipulation prowess of a Digital Signal Processor (DSP). This particular model is part of Microchip's innovative dual-core dsPIC33CH family, designed to facilitate sophisticated control applications and complex algorithms in a compact and power-efficient package.

Key Features:

• Core: Dual-core configuration with a master (M) CPU and a slave (S) CPU, both operating at up to 70 MIPS (million instructions per second).
• Memory: Equipped with 64KB of Flash memory and 8KB of RAM, providing ample space for program storage and real-time data processing.
• Peripheral Integration: Includes a rich set of peripherals such as high-speed ADCs, PWMs, timers, and communication interfaces like UART, SPI, and I2C, enabling versatile connectivity and control capabilities.
• Operating Voltage: The device operates within a range of 3.0V to 3.6V, making it suitable for a wide array of power-sensitive applications.
• Temperature Range: Industrial temperature range from -40°C to +85°C, ensuring reliable performance under harsh environmental conditions.

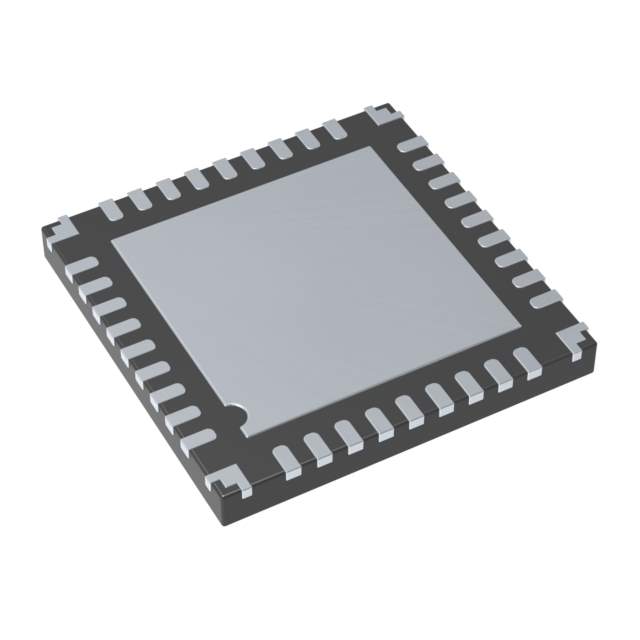

• Packaging: Available in a compact 36-pin QFN (Quad Flat No-lead) package, optimizing board space without compromising on functionality.

Applications:

The dSPIC33CH64MP503-I/M5 is ideal for a variety of applications that require advanced control algorithms and signal processing, such as:

• Automotive systems
• Industrial automation and control
• Motor control
• Power conversion
• IoT devices
• Robotics

Microchip's dSPIC33CH64MP503-I/M5 is an excellent choice for engineers seeking a robust and versatile DSC that can handle demanding applications while minimizing power consumption and maximizing performance.
