Products specifications

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 51 Weeks
Features Capacitive Touch Buttons 20-QFN (4x4)
Manufacturer Microchip Technology
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount

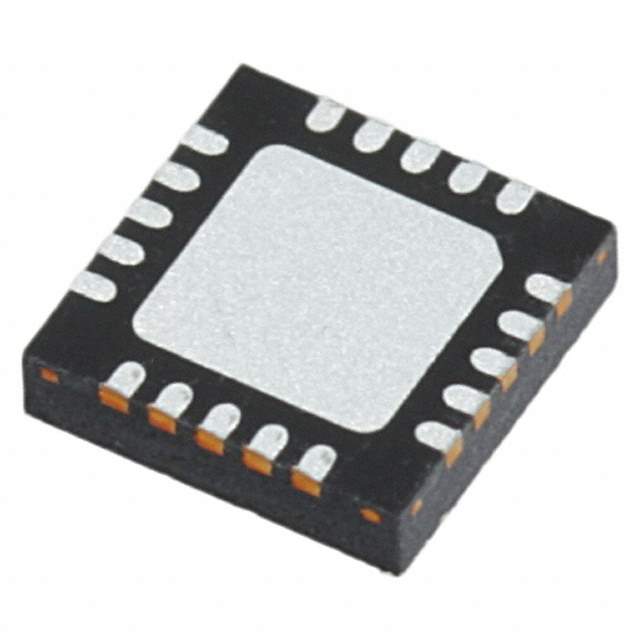

Package 20-TQFN Exposed Pad
Case / Package 20-QFN (4x4)
Family Name CAP1128
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number CAP1128-1-BP-TRCT, CAP1128-1-BP-TRDKR
Quantity per package 5000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 914664-CAP1128-1-BP-TR
Ultra Librarian 3D Model Ultra Librarian CAP1128-1-BP-TR CAD Model

Description

Microchip Technology's CAP1128-1-BP-TR Capacitive Touch Sensor

The CAP1128-1-BP-TR is a highly integrated capacitive touch sensor controller designed by Microchip Technology, a leader in smart, connected, and secure embedded control solutions. This innovative component is part of the CAP1128 series, which offers multiple channels for capacitive touch sensing, making it an ideal choice for a wide range of interactive applications.

This capacitive touch sensor controller features eight (8) individual capacitive touch sensor inputs with programmable sensitivity for providing a responsive user interface. The CAP1128-1-BP-TR supports multiple button configurations and can be used to implement slider and scroll wheel functionalities, offering designers flexibility in interface design.

One of the key advantages of the CAP1128-1-BP-TR is its robust noise immunity and environmental tolerance. The device incorporates advanced algorithms to reduce the influence of noise and changes in the environment, ensuring reliable operation in a variety of conditions. This makes it suitable for applications in challenging environments, such as industrial controls, home appliances, and consumer electronics.

The CAP1128-1-BP-TR is designed with power efficiency in mind. It features a low-power mode that significantly reduces power consumption when the touch inputs are not in use, making it an excellent choice for battery-powered devices. Additionally, the sensor includes an automatic recalibration function, which helps maintain touch sensitivity and consistency over time and through varying environmental conditions.

For ease of use, the CAP1128-1-BP-TR offers an I2C interface, allowing for straightforward communication with microcontrollers and processors. The device comes in a compact, surface-mount package, making it suitable for space-constrained applications. With its small form factor and powerful features, the CAP1128-1-BP-TR is an excellent solution for adding touch capabilities to your next project.

Whether you are designing an interactive kiosk, a modern home appliance interface, or a sleek consumer electronic device, the CAP1128-1-BP-TR from Microchip Technology provides a reliable, responsive, and user-friendly touch sensing experience.
