Microchip Technology's CAP1114-1-EZK-TR

Introducing the CAP1114-1-EZK-TR, a remarkable touch sensor controller from the renowned Microchip Technology. This sophisticated device is designed to elevate user interfaces by offering a multi-channel capacitive touch solution. It is an ideal component for applications requiring touch pads or buttons, such as consumer electronics, home appliances, and industrial control panels.

The CAP1114-1-EZK-TR features 14 capacitive touch sensor inputs, which can be configured to sense touch through a variety of materials, such as plastic, glass, or even wood. This versatility allows designers to create sleek, modern interfaces without compromising on functionality. The device's high sensitivity and advanced algorithms help ensure reliable and accurate touch detection, even in challenging environmental conditions.

Equipped with an integrated LED driver, the CAP1114-1-EZK-TR offers direct control of up to 11 LED outputs. This feature simplifies the design process by eliminating the need for additional components to manage light indicators or backlighting in touch panel applications. The LED driver supports intensity control and can produce a wide range of effects, including blinking, breathing, and dimming, adding a visually engaging element to the user interface.

The device also boasts robust ESD protection, safeguarding the touch sensor inputs from electrostatic discharges, which are common in everyday user interactions. This protection ensures long-term reliability and stability of the touch sensing functionality.

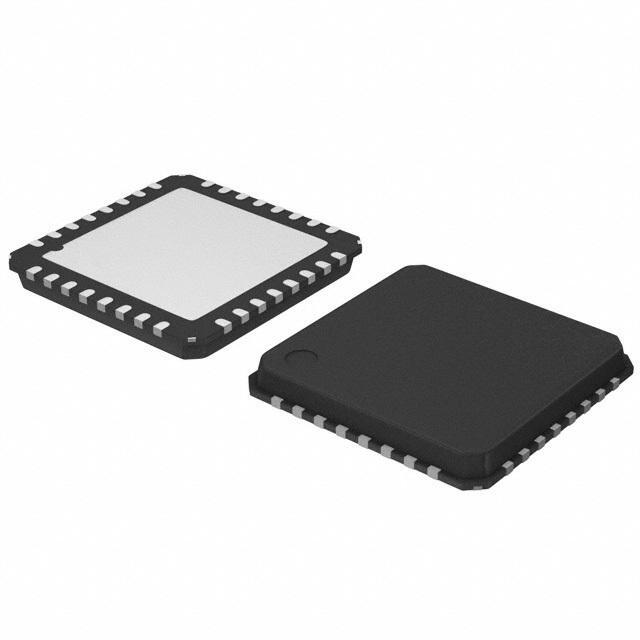

Communication with the CAP1114-1-EZK-TR is facilitated through an I²C compatible interface, allowing for easy integration with microcontrollers and processors. The device is available in a compact 32-pin QFN package, making it suitable for space-constrained designs.

Microchip Technology's commitment to quality and performance is evident in the CAP1114-1-EZK-TR, which is designed to meet the rigorous demands of modern electronic designs. Enhance your product's user experience with this advanced capacitive touch sensor controller, and deliver intuitive and responsive interfaces to your customers.
