Products specifications Report Issue?

Manufacturer Microchip Technology
Packaging Reel
Core Processor AVR
Core Size 8-Bit
Speed 16MHz
Connectivity I2C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 23
Program Memory Size 16KB (8K x 16)
Program Memory Type FLASH
EEPROM Size 512 x 8
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 1.8V ~ 5.5V
Data Converters A/D 8x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 32-TQFP
Supplier Device Package 32-TQFP (7x7)
Part Number Series ATMEGA168PA
Manufacturer Pack Quantity 2,000
MSL Level 3 (168 Hours)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811592-ATMEGA168PA-15AZ
Ultra Librarian 3D Model Ultra Librarian ATMEGA168PA-15AZ CAD Model

Description

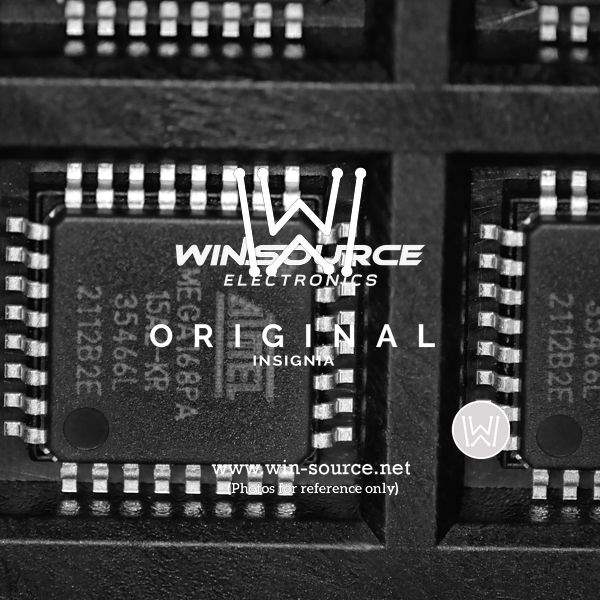

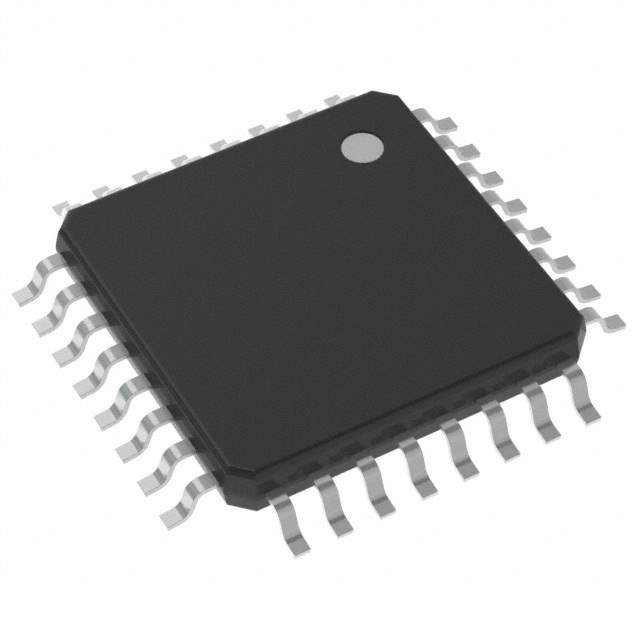

Microchip Technology ATMEGA168PA-15AZ Microcontroller

The ATMEGA168PA-15AZ is a high-performance, low-power Atmel AVR 8-bit microcontroller that combines 16KB ISP flash memory, 512-Byte EEPROM, 1KB SRAM, and a wealth of versatile peripherals. Manufactured by Microchip Technology, this microcontroller is designed to offer a perfect balance between power consumption and processing capability, making it ideal for a wide array of applications ranging from industrial control systems to consumer electronics.

Key Features:

  • Advanced RISC Architecture: With 131 powerful instructions, most of which are executed in a single clock cycle, the ATMEGA168PA-15AZ achieves throughputs approaching 1 MIPS per MHz, optimizing the power consumption versus processing speed ratio.
  • High Endurance Non-volatile Memory Segments: The device provides 16KB of in-system programmable flash with read-while-write capabilities, 512 bytes of EEPROM, and 1KB of internal SRAM.
  • Peripheral Features: Includes an 8-channel 10-bit A/D converter, a master/slave SPI serial interface, a byte-oriented 2-wire serial interface, and a programmable watchdog timer with internal oscillator.
  • Comprehensive Clock Management: A variety of clock sources can be selected, including a precision internal oscillator, an external crystal oscillator, or a resonator for the system clock.
  • Power Efficiency: The device operates between 1.8-5.5 volts and features five different power-saving modes. This adaptability allows the microcontroller to balance performance with energy efficiency, making it suitable for battery-powered applications.
  • Robust I/O and Package: 23 programmable I/O lines are housed in a 32-lead TQFP package, providing ample connectivity for interfacing with various peripherals and sensors.

Applications:

The versatile nature of the ATMEGA168PA-15AZ makes it an excellent choice for projects that require a compact, yet powerful microcontroller. It's commonly used in:

  • Automotive systems
  • Home automation and security
  • Industrial control systems
  • Medical devices
  • Smart energy solutions
  • Consumer electronics

With its rich feature set and flexibility, the ATMEGA168PA-15AZ from Microchip Technology is a go-to microcontroller for designers and engineers looking to develop sophisticated and power-conscious applications.
