Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microprocessors
Mfr Microchip Technology
Series SAM9M
Package Tray
Product Status Obsolete
Core Processor ARM926EJ-S
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 400MHz
RAM Controllers LPDDR, LPSDR, DDR2, SDR, SRAM
Graphics Acceleration No
Display & Interface Controllers LCD, Touchscreen, Video Decoder
Ethernet 10/100Mbps
USB USB 2.0 (3)
Voltage - I/O 1.8V, 3.3V
Temperature Range - Operating -40°C ~ 85°C (TA)

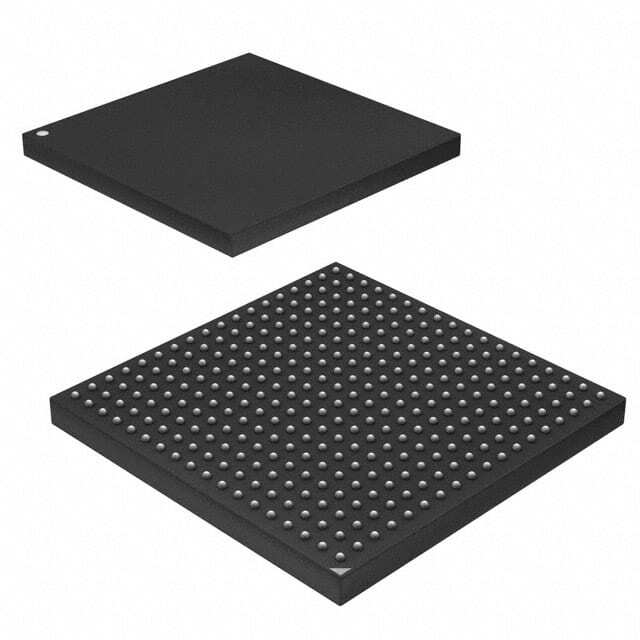

Package / Case 324-TFBGA
Supplier Device Package 324-TFBGA (15x15)
Additional Interfaces AC97, EBI/EMI, I²C, ISI, MMC/SD/SDIO, SPI, SSC, UART/USART
Base Product Number AT91SAM9M10
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Standard Package 126
Win Source Part Number 1020887-AT91SAM9M10-CU
Ultra Librarian 3D Model Ultra Librarian AT91SAM9M10-CU CAD Model

Description

Microchip Technology AT91SAM9M10-CU Product Overview

The AT91SAM9M10-CU is a high-performance microcontroller designed by Microchip Technology that is tailored for multimedia applications. This advanced system-on-chip (SoC) is based on the ARM926EJ-S processor, which operates at speeds up to 400 MHz, providing the computational power necessary for intensive tasks.

Key Features:

  • Processor Core: ARM926EJ-S core capable of running up to 400 MHz, featuring a Java accelerator and DSP instruction extensions for enhanced performance.
  • Memory Support: Integrated with a wide range of memory interfaces, including DDR2, LPDDR, and NAND flash, along with an SDRAM controller, ensuring flexible storage options and quick access to data.
  • Graphics and Multimedia: Comes with a powerful GPU supporting 2D acceleration, a video decoder, and a TFT/LCD controller, making it ideal for rich multimedia applications.
  • Connectivity: Offers comprehensive connectivity options with USB High Speed Host and Device ports, Ethernet MAC, multiple UARTs, SPI, and I2C interfaces, facilitating easy integration into a variety of systems.
  • Security: Features hardware encryption and decryption engines to provide robust security for your applications, including AES, 3DES, and SHA algorithms.

Applications:

The AT91SAM9M10-CU excels in applications that require high-quality video processing, graphical interfaces, and reliable connectivity. It's commonly used in:

  • Point-of-Sale (POS) terminals
  • Industrial control systems
  • Smart home devices
  • Medical equipment
  • Entertainment systems

With its comprehensive feature set and powerful ARM core, the AT91SAM9M10-CU from Microchip Technology is a versatile choice for designers looking to create sophisticated and secure multimedia systems.

For detailed technical specifications, datasheets, and support resources, please visit the official Microchip Technology website.
