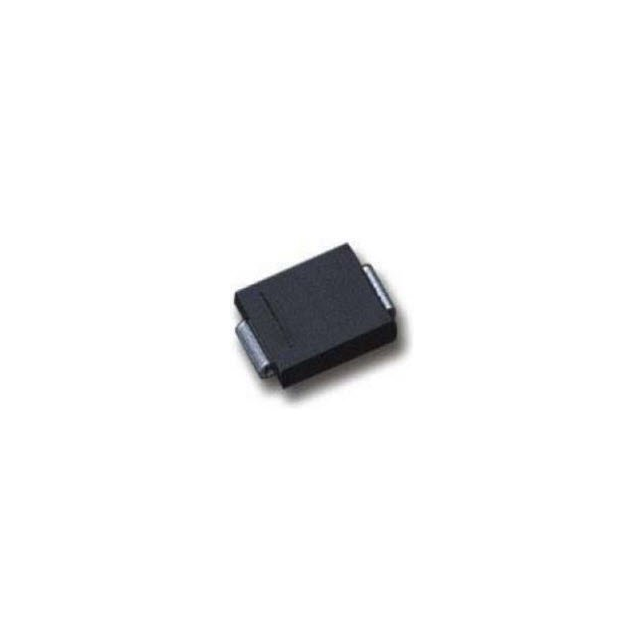

SMDJ24 Real Image
Same model may have multiple batches, images only for reference.

SMDJ24

Part No SMDJ24
Manufacturer Meritek
Catalog TVS - Diodes
Datasheet
SMDJ24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Meritek
Series SMDJ
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 26.7V
Voltage - Clamping (Max) @ Ipp 43V
Current - Peak Pulse (10/1000µs) 69.77A
Power - Peak Pulse 3000W (3kW)
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case DO-214AB (SMC)
Other Names 2997-SMDJ24TR
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1299888-SMDJ24
Ultra Librarian 3D Model Ultra Librarian SMDJ24 CAD Model

Description

The SMDJ24 is a Zener TVS diode from the SMDJ series of circuit protection devices.

  • Package: Tape and reel
  • Application: General purpose
  • Channel Type: Unidirectional
  • Reverse Standoff Voltage: 24V
  • Breakdown Voltage: 26.7V
  • Clamping Voltage: 43V (max) @ Ipp
  • Peak Pulse Power: 3000W (3kW)
  • Mounting: SMD (SMT)
  • Package: DO-214AB (SMC)
  • Operating Temperature: -55°C to 150°C
