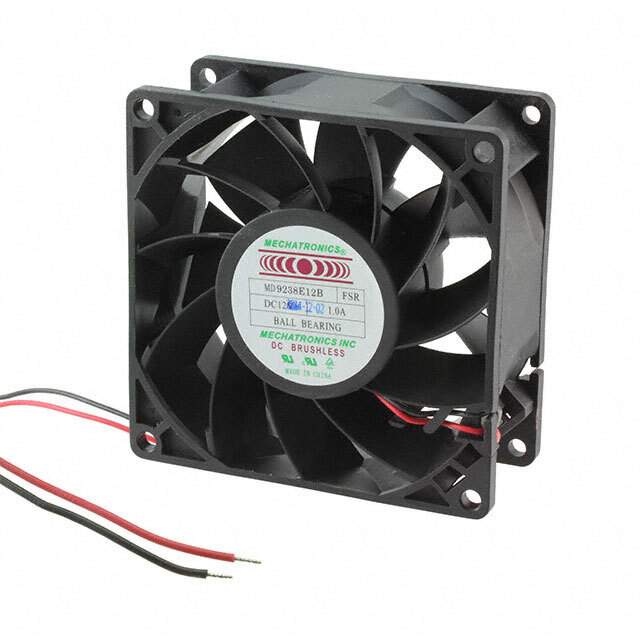

MD9238E12B-FSR Real Image
Same model may have multiple batches, images only for reference.

MD9238E12B-FSR

Part No MD9238E12B-FSR
Manufacturer Mechatronics Fan Group
Catalog DC Fans
Description FAN AXIAL 92X38MM 12VDC / Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 110.6 CFM (3.10m³/min) 2 Wire Leads
Datasheet
MD9238E12B-FSR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Mechatronics Fan Group
Series MD9238
Package Bulk
Voltage - Rated 12VDC
Dimension Square - 92mm L x 92mm H
Width 38.00mm
Air Flow 110.6 CFM (3.10m³/min)
Static Pressure 0.670 in H2O (166.9 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Thermal Overload Protector (TOP)
Noise 55.0dB(A)
RPM 4800 RPM
Termination 2 Wire Leads
Approval Agency CE, TUV, UL
Weight 0.397 lb (180.08 g)
Current Rating (Amps) 1.00A
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Base Product Number MD9238
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Other Names 1570-1129
Standard Package 50
Win Source Part Number 1174748-MD9238E12B-FSR
Ultra Librarian 3D Model Ultra Librarian MD9238E12B-FSR CAD Model

Description

The 1174748-MD9238E12B-FSR is a tubeaxial fan manufactured by Mechatronics Fan Group.

  • Product Name: 1174748-MD9238E12B-FSR
  • Manufacturer: Mechatronics Fan Group
  • Win Source Part Number: 1174748-MD9238E12B-FSR
  • Shape: square 92mm L x 92mm H
  • Thermal Overload Protector: TOP
  • Termination: 2-wire lead
  • Noise Level: 55.0dB(A)
  • Air Flow: 110.6 CFM (3.10m³/min)
  • Static Pressure: 0.670 in H2O (166.9 Pa)
  • Voltage: 12VDC
  • RPM: 4800 RPM
  • Weight: 0.397 lb (180.08 g)
  • Material: Polybutylene Terephthalate (PBT)
