Same model may have multiple batches, images only for reference.

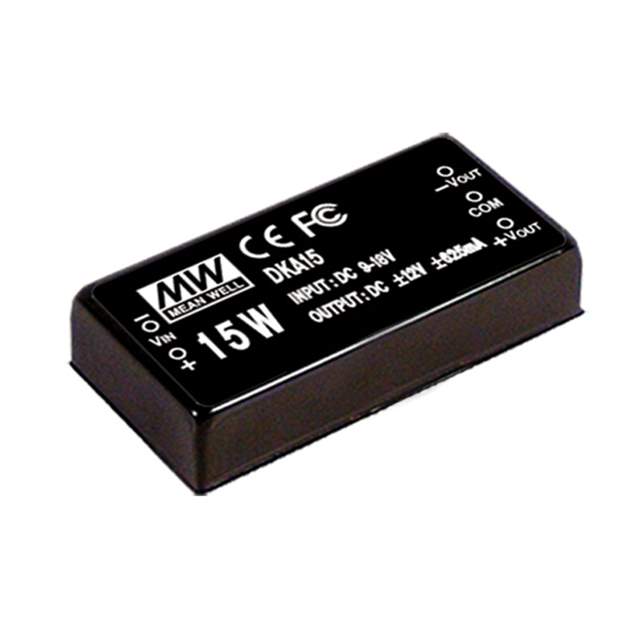

DKA15B-05 Real Image
Same model may have multiple batches, images only for reference.

DKA15B-05

Part No DKA15B-05
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 15W / Isolated Module DC DC Converter 2 Output 5V -5V 1.5A, 1.5A 18V - 36V Input
Datasheet
DKA15B-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer MEAN WELL USA Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 1.5A, 1.5A
Power (Watts) 15 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 71°C (With Derating)
Efficiency 80%
Mounting Through Hole
Case / Package 5-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm)
Base Product Number DKA15
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number DKA15B-05-ND,1866-1306
Standard Package 400
Win Source Part Number 1335141-DKA15B-05
Ultra Librarian 3D Model Ultra Librarian DKA15B-05 CAD Model

Description

The MEAN WELL USA Inc. DKA15B-05 is a DC-DC converter that provides 15W of power with an efficiency of 80%.

  • Power: 15W
  • Efficiency: 80%
  • Package: 5-DIP module package
  • Isolation Voltage: 1 kV
  • Features: Overcurrent protection (OCP) and short circuit protection (SCP)
  • Outputs: Two outputs, one with 5V and the other with -5V
  • Application: Information technology equipment (ITE)
  • Suitable for: Commercial applications
  • Temperature Range: -40°C to 71°C (with derating)
  • ROHS3 Compliant: Yes
  • REACH: Unaffected by REACH
