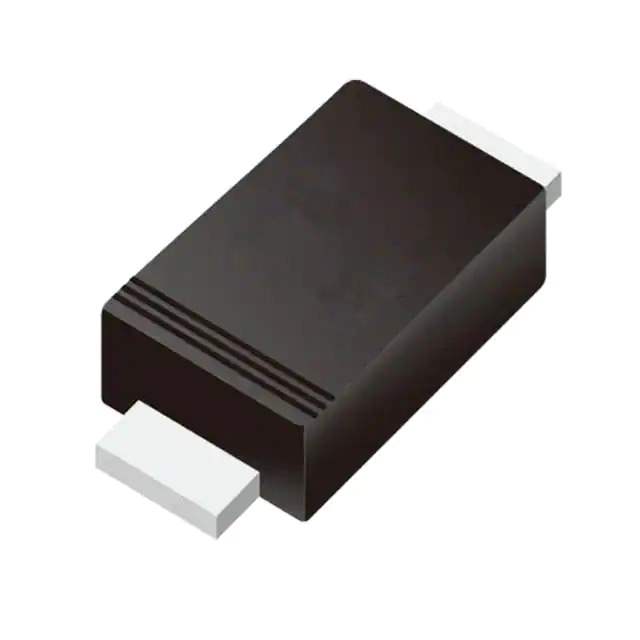

SS14F Real Image
Same model may have multiple batches, images only for reference.

SS14F

Part No SS14F
Manufacturer MDD
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 1A SMAF
Datasheet
SS14F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMAF
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Capacitance @ Vr, F 110pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SMAF
Operating Temperature - Junction -55°C ~ 125°C
Standard Package 12,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 676246-SS14F
Ultra Librarian 3D Model Ultra Librarian SS14F CAD Model

Description

The 676246-SS14F is a fast recovery Schottky diode designed for rectifier applications.

  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 1A
  • Forward Voltage Drop: 550mV @ 1A Forward Current
  • Recovery Time: Less than 500ns
  • Package: DO-221AC, SMA Flat Leads
  • Capacitance: 110pF @ 4V and 1MHz
  • Operating Temperature: -55°C to 125°C
  • Product Category: Discrete Semiconductor Products
  • Specific Design: Rectification purposes
  • Product Status: Active
