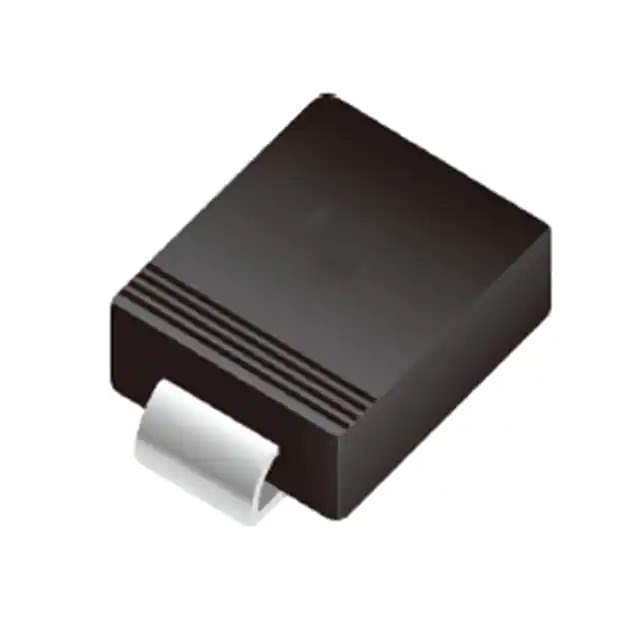

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMC
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1 V @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMC)
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 6,000 pcs
REACH Status REACH Unaffected
Win Source Part Number 589798-ES3DC
Ultra Librarian 3D Model Ultra Librarian ES3DC CAD Model

Description

The 589798-ES3DC is a fast recovery diode in the SMC package.

  • Maximum DC Reverse Voltage: 200V
  • Average Rectified Current: 3A
  • Forward Voltage: 1V @ 3A
  • Reverse Recovery Time: 35ns
  • Reverse Leakage Current: 5μA @ 200V
  • Operating Temperature: -55°C to 150°C
  • Mounting: Surface Mountable
  • Package: DO-214AB (SMC)
  • Packaging: Tape and Reel
  • Quantity: 6,000 pieces
  • Series: SMC
  • Manufacturer: MDD
  • Status: Active
