Maxim Integrated's MAX745EAP-T: Advanced Lithium-Ion Battery Charger IC

The MAX745EAP-T from Maxim Integrated is a sophisticated charging solution designed for single-cell lithium-ion (Li+) batteries. This high-performance integrated circuit (IC) is engineered to optimize charging while ensuring safety and efficiency in a variety of applications, from portable devices to backup power systems.

The MAX745EAP-T provides a precise and controlled charging process through its advanced features. It offers an adjustable charge voltage up to 4.2V with ±0.75% accuracy, ensuring that the battery is charged to its maximum capacity without overcharging, which could potentially damage the battery and reduce its lifespan. The charge current is also adjustable, allowing users to tailor the charging speed to the specific needs of their application and battery capacity.

This IC supports a wide input voltage range, making it versatile for use with various power supplies. Its high-frequency switch-mode operation enables the use of small external components, thereby reducing the overall solution size and making it an excellent choice for space-constrained applications.

Safety features are paramount in the design of the MAX745EAP-T. It includes prequalification charging for deeply discharged cells, a top-off charge cycle for maximum capacity, and an automatic charge termination when the charge cycle is complete. Additionally, it has thermal protection features that shut down the charge process in the event of excessive temperature, protecting both the charger and the battery from potential heat damage.

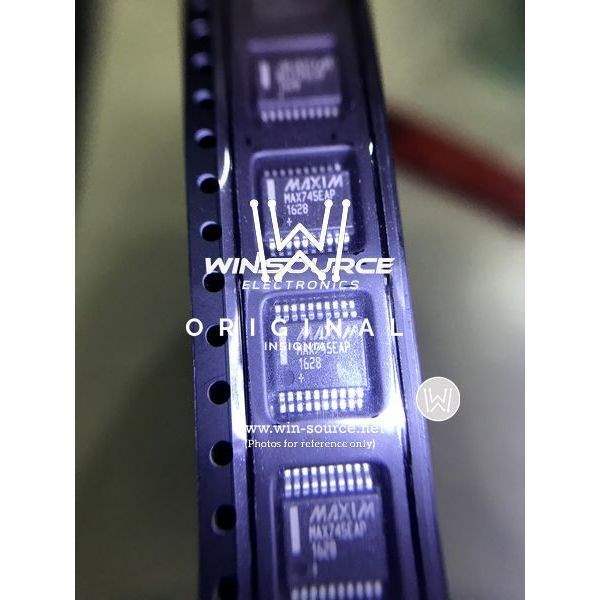

The MAX745EAP-T comes in a 20-pin SSOP package, offering a compact footprint suitable for portable devices. It can be programmed through an external resistor, making it a user-friendly option for a wide range of battery charging applications.

In summary, Maxim Integrated's MAX745EAP-T is a comprehensive charging solution that combines precision, versatility, and safety for lithium-ion battery applications. Its ability to deliver a high-quality charge efficiently makes it an ideal choice for designers looking to extend the life and performance of their battery-powered products.
