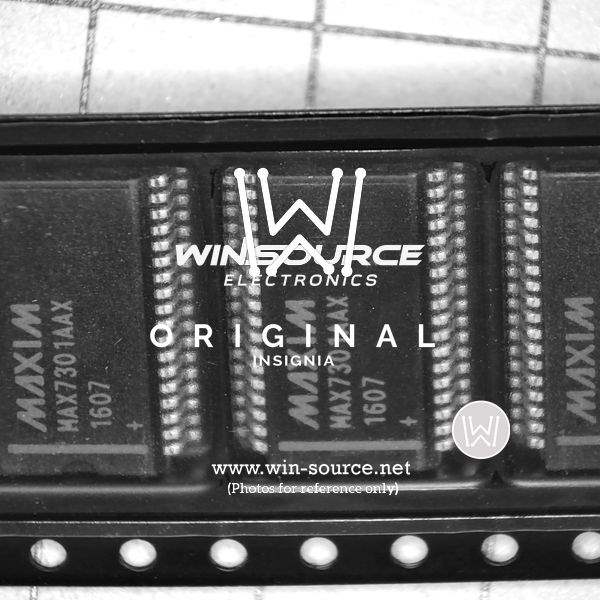

Maxim Integrated MAX7301AAX+ Product Overview

The MAX7301AAX+ is a highly versatile, serial-interfaced peripheral from Maxim Integrated designed to add additional I/O ports to microcontroller-based systems. This compact and efficient device comes in a 36-SSOP package and operates over the extended -40°C to +125°C temperature range, making it suitable for a wide array of applications, including industrial control, automotive systems, and portable electronics.

Key Features

• Expandable I/O Ports: The MAX7301AAX+ provides 28 ports that can be configured as inputs or outputs, allowing for expansion of I/O capabilities without the need for a larger microcontroller.
• Serial Interface: It utilizes a 4-wire serial interface compatible with SPI™, QSPI™, and MICROWIRE™, facilitating easy communication with the majority of microcontrollers.
• Flexible Configuration: Each port can be individually configured as either a push-pull output, an open-drain output, or an overvoltage-protected Schmitt input, providing design flexibility.
• Transition Detection: The device includes transition detection on the inputs, with the capability to monitor for any state changes, thereby reducing the need for constant polling by the host microcontroller.

Power Management

• Low Power Consumption: The MAX7301AAX+ is optimized for low power consumption, with a shutdown current of less than 5µA, making it ideal for battery-operated devices.
• Wide Voltage Range: It operates from a 2.7V to 5.5V supply voltage, ensuring compatibility with various system voltages and allowing for flexible power management.

Reliability and Protection

• Built-In Protection: The device features built-in overvoltage protection up to 6V, which safeguards the inputs against unexpected voltage spikes.
• Extended Temperature Range: Its ability to operate over an extended temperature range makes it reliable for use in harsh environments.

The MAX7301AAX+ from Maxim Integrated is a powerful solution for systems that require additional I/O ports without increasing the footprint of the microcontroller. Its robust feature set, coupled with its ease of integration, makes it an excellent choice for designers looking to enhance their system's capabilities with minimal complexity.
