The ST72F63BK6M1 is a versatile and powerful microcontroller unit (MCU) from STMicroelectronics, designed to cater to a wide range of embedded applications. This MCU is based on the high-performance ST7 8-bit architecture and is equipped with a variety of features that make it suitable for applications such as industrial control, automotive systems, home appliances, and personal electronics.

Key Features

• CPU: 8-bit architecture with a maximum clock frequency of 8 MHz, providing a balance between power consumption and processing capability.
• Memory: Equipped with 6KB of Flash program memory, ensuring ample space for complex applications, and 384 bytes of RAM for efficient data handling.
• Peripherals: Includes a range of built-in peripherals such as multiple 16-bit timers, an 8-bit ADC (Analog to Digital Converter), and a synchronous serial communication interface.
• I/O Ports: Offers up to 35 I/O lines, providing extensive interfacing capabilities with external devices.
• Supply Voltage: Operates over a wide range of supply voltages from 3.0V to 5.5V, making it compatible with both 3.3V and 5V systems.
• Power Saving: Features multiple power-saving modes including Halt and Wait modes, which help in reducing power consumption during idle times.

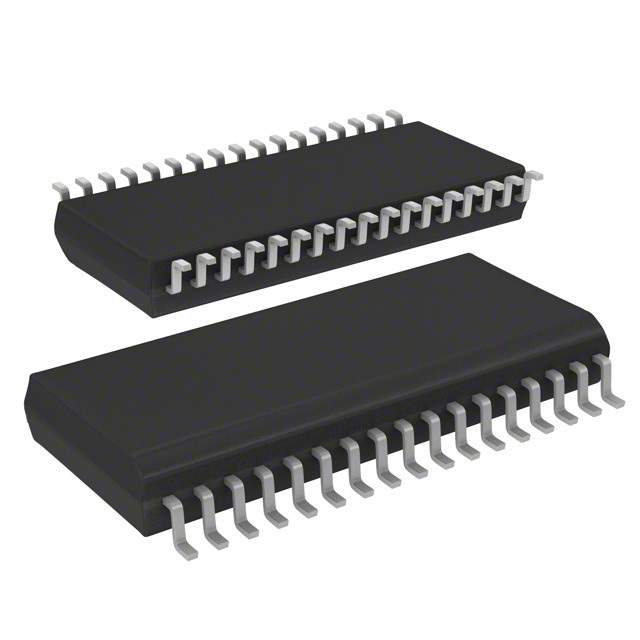

• Package: Available in a 32-pin package, which is suitable for space-constrained applications.

Applications

The ST72F63BK6M1 MCU is a highly adaptable component that can be used in a variety of applications. Its robust I/O capabilities and extensive peripheral set make it an ideal choice for:

• Automotive control systems
• Industrial automation and process control
• Consumer electronics
• Smart home devices and home automation
• Battery management
• Custom embedded systems

With its integration of essential features, the ST72F63BK6M1 microcontroller is a reliable and cost-effective solution for developers looking to create sophisticated and responsive embedded systems.
