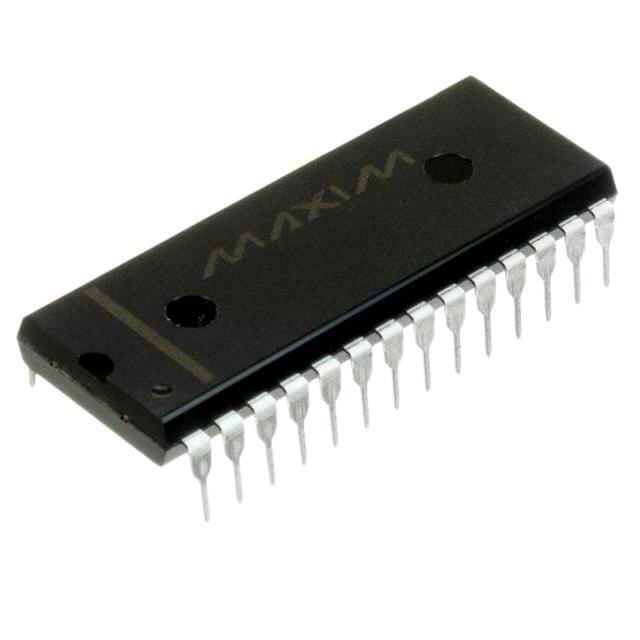

The MAX337CPI is a high-performance, precision analog switch from Maxim Integrated that is designed to cater to a wide array of applications requiring low distortion and high-speed switching. This versatile component is an ideal solution for signal routing in both digital and analog domains, offering users a seamless and efficient way to manage their signal paths.

Key Features

• Low On-Resistance: The switch boasts a low on-resistance (R_ON) which typically stands at 25 ohms, ensuring minimal signal attenuation and power loss, thus preserving signal integrity.
• Single Supply Operation: It operates efficiently on a single supply voltage ranging from +4.5V to +30V, or a dual supply of ±4.5V to ±20V, providing flexibility in various circuit configurations.
• Low Crosstalk: With its excellent isolation between channels, the MAX337CPI minimizes crosstalk, making it suitable for use in audio and video signal routing where maintaining signal purity is paramount.
• Fast Switching Times: The device features fast turn-on and turn-off times, typically 175ns and 145ns respectively, which is essential for applications that require rapid signal switching.
• High Off-Isolation: High off-isolation of -80dB at 1MHz ensures that signals are well contained when the switch is in the off state, reducing the likelihood of unintended signal leakage.

Applications

The MAX337CPI is suited for a variety of applications, including but not limited to:

• Audio and video signal routing
• Communication systems
• Data acquisition systems
• Sample-and-hold circuits
• Test equipment

In summary, the MAX337CPI from Maxim Integrated is a reliable and efficient analog switch that offers low on-resistance, fast switching, and high signal integrity, making it a valuable component for designers in a range of electronic systems. Its versatility and performance characteristics ensure that it meets the stringent requirements of modern electronic applications.
