Maxim Integrated MAX2657EWT+T Low-Noise Amplifier

The MAX2657EWT+T from Maxim Integrated is a high-performance, low-noise amplifier (LNA) designed for GPS, Galileo, and GLONASS satellite navigation systems. This device is engineered to provide a perfect balance between low noise figure and high linearity, making it an ideal solution for critical navigation and timing applications where signal integrity is paramount.

With a focus on efficiency, the MAX2657EWT+T operates over a wide supply voltage range of 1.6V to 3.3V, making it suitable for battery-powered devices where power conservation is essential. Its low quiescent current consumption helps to extend battery life, ensuring reliable performance for handheld and portable navigation devices.

The amplifier is designed to work in the 1559MHz to 1606MHz frequency range, which covers the L1/E1/B1 bands used by GPS, Galileo, and GLONASS systems. This wideband capability ensures compatibility with multiple satellite systems, providing designers with the flexibility to create global navigation solutions.

The MAX2657EWT+T boasts a low noise figure of just 0.8dB, which significantly improves the signal-to-noise ratio of received signals. This is critical for maintaining the integrity of weak satellite signals, especially in urban environments with high levels of interference. The device also offers a high gain of 20.5dB, which helps to boost signal strength and improve the overall performance of the navigation system.

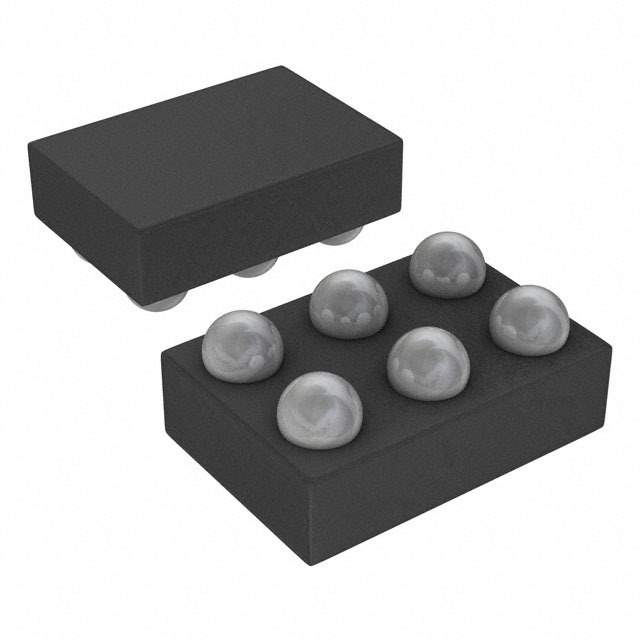

Maxim Integrated has packaged the MAX2657EWT+T in a tiny 6-pin leadless package (1.5mm x 1mm), which is ideal for space-constrained applications. The small footprint allows for integration into compact modules and devices without sacrificing performance. Additionally, the device is characterized for operation over the -40°C to +85°C temperature range, ensuring reliable performance across a wide range of environmental conditions.

Overall, the MAX2657EWT+T LNA from Maxim Integrated represents a robust and versatile solution for designers looking to enhance the performance of their satellite navigation systems. With its low noise figure, high gain, and small form factor, this amplifier is well-suited for applications ranging from automotive navigation to personal tracking devices and professional survey equipment.
