Maxim Integrated MAX14595ETA+T High-Speed USB Switch

The MAX14595ETA+T from Maxim Integrated is a high-performance, high-speed USB 2.0 (480Mbps) switch that is designed to enable USB multiplexing for a variety of applications. This versatile switch is particularly suited for portable devices where USB connectivity is required, such as smartphones, tablets, cameras, and laptops. With its compact package and integrated features, the MAX14595ETA+T is an ideal choice for designers looking to enhance the USB capabilities of their products while maintaining a small footprint.

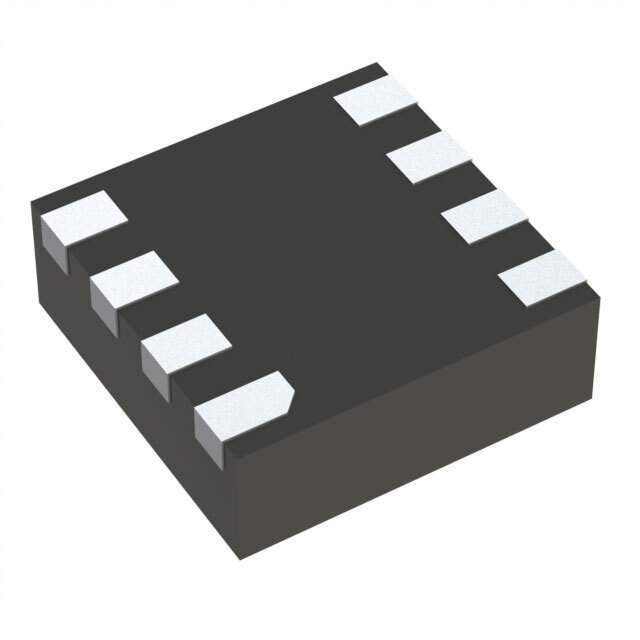

The switch comes in a tiny 8-pin TDFN package, measuring just 2mm x 2mm, which makes it perfect for space-constrained applications. Its small size does not compromise its performance or functionality, as the MAX14595ETA+T offers low on-capacitance (C_ON) and on-resistance (R_ON), ensuring minimal signal distortion and power loss during operation.

One of the key features of the MAX14595ETA+T is its low-power consumption, which helps to extend the battery life of portable devices. The switch also includes an over-voltage protection (OVP) circuit, which protects the device against voltage spikes beyond the normal operating voltage. This is particularly important for safeguarding sensitive electronics in the event of unexpected power surges.

The MAX14595ETA+T is also equipped with an automatic VBUS switching function, which simplifies the design and reduces the need for external components. This feature allows the switch to automatically connect the VBUS signal to the appropriate path depending on the USB mode, whether the device is operating as a host or a peripheral.

For design flexibility, the MAX14595ETA+T supports both high-speed (480Mbps) and full-speed (12Mbps) USB operation. It also offers ESD protection up to ±15kV Air Gap and ±8kV Contact Discharge, which meets the IEC 61000-4-2 standard, providing robust protection against electrostatic discharge events.

In summary, the Maxim Integrated MAX14595ETA+T is a compact, high-speed USB switch with advanced protection features and low power consumption, making it a top choice for designers looking to incorporate reliable USB functionality into their space-sensitive applications.
