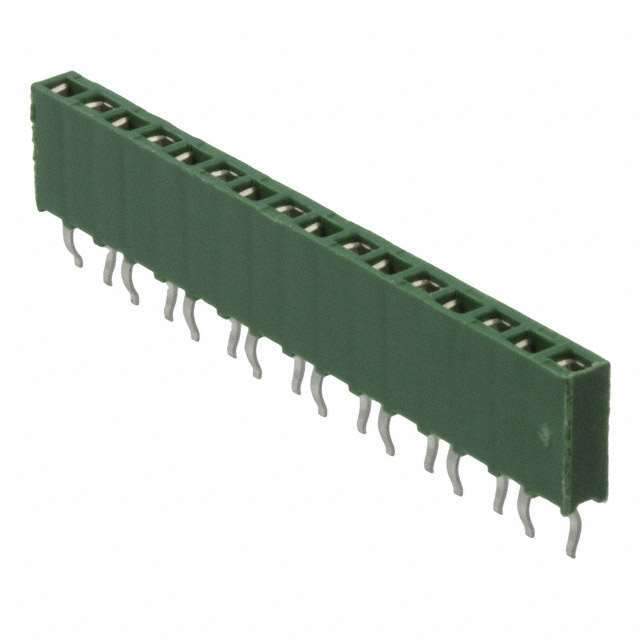

1-215297-6 Real Image
Same model may have multiple batches, images only for reference.

1-215297-6

Part No 1-215297-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 16POS 0.1 GOLD PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 16
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Style Through Hole
Termination Kinked Pin, Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 31.5μin (0.80μm)
Insulation Color Green
Insulation Height 0.276" (7.00mm)
Contact Length - Post 0.122" (3.10mm)
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Insulation Material Polyester, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 118.1μin (3.00μm)
Manufacturer Pack Quantity 40
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808211-1-215297-6
Ultra Librarian 3D Model Ultra Librarian 1-215297-6 CAD Model

Description

The board to board style connector TE Connectivity AMP Connectors 808211-1-215297-6 from TE Connectivity AMP Connectors is a medium popularity electronic component.

  • Positions: 16
  • Mounting Style: Through Hole
  • Contact Type: Female Socket
  • Contact Finish (Mating): Gold, 31.5µin (0.80µm)
  • Contact Finish (Post): Tin, 118.1µin (3.00µm)
  • Insulation Color: Green
  • Contact Shape: Square
  • ECCN: EAR99
