MAX14571EUD+T

Part No MAX14571EUD+T
Manufacturer Maxim Integrated
Catalog Surge Suppression ICs
Description Adjustable Overvoltage and Overcurrent Protectors with High Accuracy
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Maxim Integrated
Packaging Reel - TR
Technology Internal Switch
Number of Circuits 1
Applications General
Mounting SMD

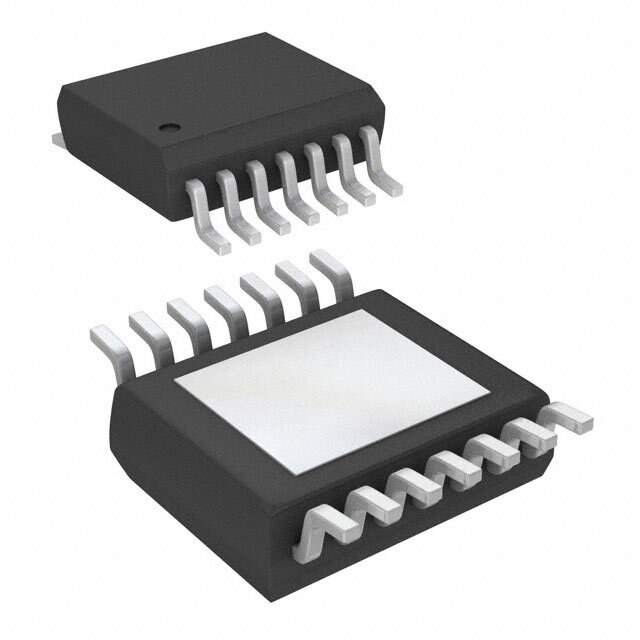

Package 14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Manufacturer Package 14-TSSOP-EP
Voltage - Working 36V
Win Source Part Number 1212151-MAX14571EUD+T
Manufacturer Homepage www.maxim-ic.com
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2019
Ultra Librarian 3D Model Ultra Librarian MAX14571EUD+T CAD Model

Description

The MAX14571EUD+T from Maxim Integrated is a sophisticated overvoltage protection controller designed to safeguard low-voltage systems against high-voltage faults up to +28V. This versatile component is an ideal solution for applications that require reliable protection from voltage transients, such as portable devices, data communication systems, and other sensitive electronic equipment.

Featuring an adjustable overvoltage lockout (OVLO) threshold, the MAX14571EUD+T allows designers to set the desired protection voltage threshold according to their specific needs. This flexibility ensures that the device can be tailored to a wide range of applications, providing precise control over the voltage protection level.

The MAX14571EUD+T is also equipped with an internal charge pump that drives an external n-channel MOSFET, which serves as the pass element. The charge pump's role is to ensure that the gate of the MOSFET is driven above the supply voltage, providing a low on-resistance path during normal operation, and swiftly disconnecting the load during overvoltage conditions.

In addition to overvoltage protection, this controller offers under-voltage lockout (UVLO) and thermal shutdown features, further enhancing the safety of the system. The UVLO function ensures that the device operates within a safe voltage range, while the thermal shutdown feature protects against excessive heat that could potentially damage the system.

The MAX14571EUD+T comes in a compact 14-pin TSSOP package, making it suitable for space-constrained applications. Its extended temperature range of -40°C to +125°C allows it to operate reliably in a variety of environments.

Overall, the Maxim Integrated MAX14571EUD+T is a robust and reliable solution for protecting sensitive electronics from voltage-related damage. Its adjustable thresholds, internal charge pump, and comprehensive protection features make it a versatile and essential component for any design requiring voltage regulation and safeguarding.
