Overview of TMS320F28023PTT Microcontroller

The TMS320F28023PTT is a highly integrated, high-performance microcontroller solution from Texas Instruments, designed for demanding control applications. This device is part of the C2000™ 32-bit microcontroller family, which is renowned for its advanced digital signal processing capabilities, combined with the ease of use of a traditional microcontroller.

Key Features

• CPU: At the heart of the TMS320F28023PTT is a 32-bit CPU, known as the C28x core, which can run at speeds up to 60 MHz, providing the computational power needed for complex algorithms and control functions.
• Memory: The device includes 64KB of flash memory and 12KB of RAM, ensuring ample space for application code and data storage.
• Peripherals: A wide array of peripherals enhances the functionality of the microcontroller, including an enhanced pulse width modulator (ePWM), 12-bit analog-to-digital converter (ADC), capture/compare units, and serial communication interfaces like UART, SPI, and I2C.
• JTAG Interface: For development and debugging, the TMS320F28023PTT is equipped with a JTAG interface, enabling easy access to the internal workings of the microcontroller.
• Power Management: The device features an on-chip voltage regulator and a variety of power modes, allowing for optimized power consumption during different operational states.

Applications

The TMS320F28023PTT is ideal for a broad range of applications, particularly in the industrial sector. It excels in motor control, digital power conversion, and intelligent sensor management. Its processing capabilities make it suitable for applications requiring advanced control algorithms, such as field-oriented control (FOC) for AC motors, and power factor correction (PFC) in power supplies.

Design Support and Tools

Developers working with the TMS320F28023PTT benefit from Texas Instruments' comprehensive suite of development tools. This includes the Code Composer Studio™ integrated development environment (IDE), which provides a full development environment for coding, debugging, and analyzing the performance of applications. Additionally, a wide range of application notes, reference designs, and the TI E2E™ support community are available to help accelerate design cycles and troubleshoot issues.

Package and Quality

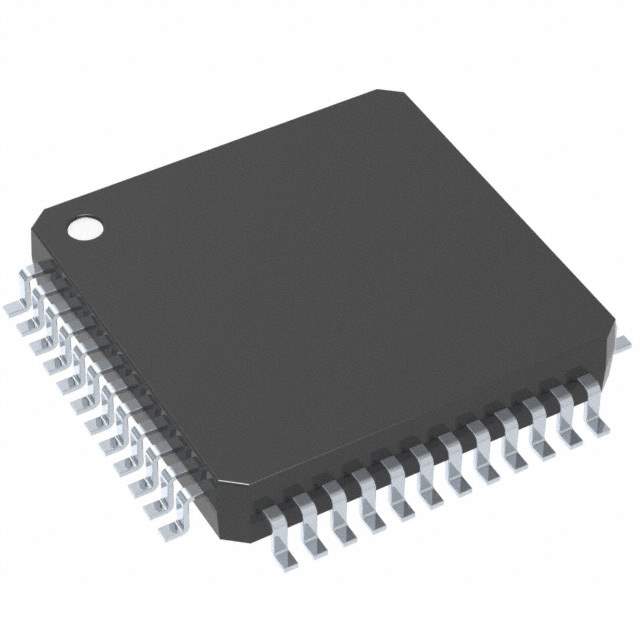

The TMS320F28023PTT comes in a 48-pin LQFP (Low-Profile Quad Flat Package), ensuring a compact footprint for space-constrained applications. The device is also characterized for operation over an extended temperature range, making it suitable for industrial environments.
