Products specifications

Category Integrated Circuits (ICs) - Interface - Drivers, Receivers, Transceivers
Mfr Maxim Integrated
Package Tray
Product Status Obsolete
Type Transceiver
Protocol T1, E1, J1
Number of Drivers/Receivers 4/4
Duplex Full
Voltage - Supply 3.135V ~ 3.465V
Temperature Range - Operating 0°C ~ 70°C
Mounting Type Surface Mount

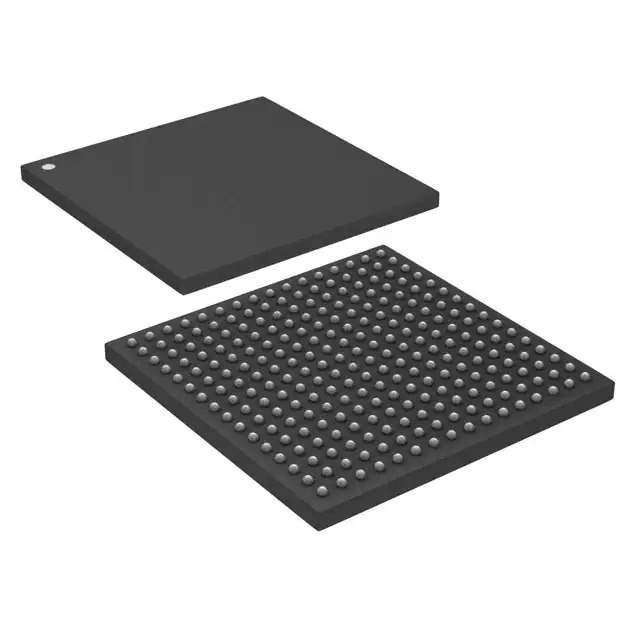

Package / Case 256-LBGA, CSBGA
Supplier Device Package 256-CSBGA (17x17)
Base Product Number DS26556
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 586500-DS26556
Ultra Librarian 3D Model Ultra Librarian DS26556 CAD Model

Description

The Maxim Integrated DS26556 is a versatile, feature-rich T1/E1/J1 transceiver that serves as an essential building block for telecommunications equipment, such as digital multiplexers, routers, and mobile base stations. Designed to meet the challenging demands of today's communication networks, the DS26556 offers a high level of integration, performance, and reliability.

Key Features

  • Multi-Protocol Support: Compatible with T1, E1, and J1 standards, the DS26556 can easily switch between these protocols, providing flexibility for network equipment used across different geographic regions.
  • Integrated Line Interface: The transceiver includes a complete line interface unit (LIU) for both transmit and receive functions, eliminating the need for external components and reducing system complexity.
  • High-Level Integration: It combines framer, LIU, and jitter attenuator functionalities into a single chip, simplifying design and conserving board space.
  • Jitter Attenuation: The on-chip jitter attenuator ensures signal integrity by reducing the effects of jitter on the received data stream.
  • Flexible Clocking Options: The DS26556 supports a wide range of clocking configurations, including loop timing, independent transmit and receive clocking, and master clock mode.
  • Programmable Interrupts: A comprehensive interrupt system allows for efficient handling of various events and reduces the processing load on the host CPU.
  • Diagnostics: Built-in diagnostic features, including loopback capabilities and a bit error rate tester (BERT), facilitate network testing and troubleshooting.

Applications

  • Digital Multiplexers
  • Frame Relay Access Devices
  • Integrated Access Devices
  • Wireless Base Station Controllers
  • Mobile Backhaul Equipment

With its robust feature set and adherence to industry standards, the Maxim Integrated DS26556 transceiver is an ideal choice for OEMs and system designers seeking to create high-performance, reliable telecommunications equipment. Its compact package and comprehensive functionality ensure that it can meet the stringent requirements of modern communication systems.
