The DS21Q352B from Maxim Integrated is a high-performance, quad-port T1/E1/J1 transceiver designed for communication applications. This device is specifically engineered to meet the rigorous demands of telecom infrastructure, providing a robust and efficient solution for transmitting and receiving T1, E1, and J1 signals. The DS21Q352B is an ideal choice for network equipment such as channel banks, digital loop carrier systems, multiplexers, and base station infrastructures.

Key Features

• Integrated Line Interface: The DS21Q352B integrates the line interface unit (LIU) for all four ports, simplifying design and reducing external component count.
• Flexible Clocking Options: It supports a wide range of clocking options, including independent crystal or external clock inputs, enabling it to adapt to various system requirements.
• Programmable Features: The device offers programmable transmit and receive pulse shapes, which allows compliance with T1, E1, or J1 standards and tailoring to specific application needs.
• Jitter Attenuator: An in-built jitter attenuator improves signal integrity and ensures reliable communication, even in challenging environments.
• Power Management: Power-down and sleep modes are available for reduced power consumption, making it suitable for energy-efficient designs.

Applications

• Telecom Infrastructure
• Wireless Base Stations
• Channel Banks
• Multiplexers
• Digital Loop Carriers

Technical Specifications

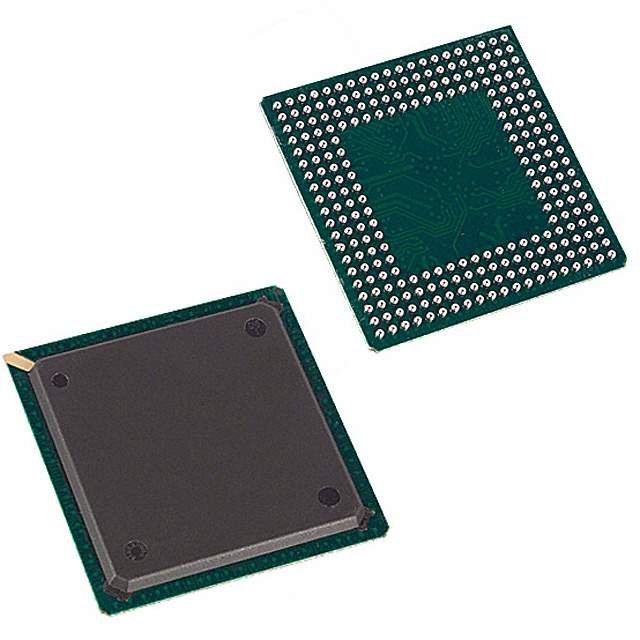

The DS21Q352B operates over a single 3.3V power supply and is available in a compact, surface-mount package. It supports industrial temperature ranges, making it suitable for deployment in a variety of environmental conditions. The device also includes diagnostic features such as loopback modes and PRBS generators/checkers to facilitate system testing and validation.

Quality and Reliability

Maxim Integrated is known for its commitment to quality and reliability, and the DS21Q352B is no exception. The device is built to the highest standards, ensuring long-term performance and stability in your telecommunications applications.
