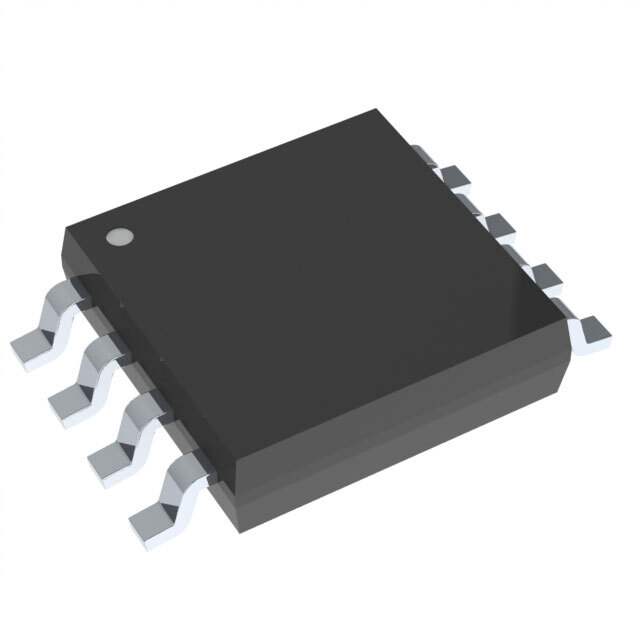

Maxim Integrated DS1669S-10 Digital Potentiometer

The DS1669S-10 is a versatile digital potentiometer designed by Maxim Integrated, a leader in the development of integrated circuits. This innovative component offers a unique solution for adjusting and controlling resistance values digitally, making it an indispensable part of various electronic applications. The DS1669S-10 is particularly well-suited for applications requiring a reliable and precise method to trim and calibrate system parameters electronically, without the need for manual potentiometer adjustments.

Featuring a 10kΩ resistance value, the DS1669S-10 allows for smooth transitions between resistance steps, ensuring high resolution and accuracy in resistance settings. The device operates over a wide voltage range, typically from 4.5V to 5.5V, which makes it compatible with most common logic levels and suitable for a variety of electronic circuits.

One of the key advantages of the DS1669S-10 is its non-volatile memory (EEPROM), which retains the last resistance setting even after the power is turned off. This ensures that the device maintains its configuration between power cycles, eliminating the need for recalibration and saving valuable time for the user. Its DIP (Dual In-line Package) form factor allows for easy insertion into a breadboard or a socket, facilitating rapid prototyping and testing.

The DS1669S-10 is controlled via a simple digital interface, which can be easily integrated with microcontrollers or other digital systems. This provides users with the flexibility to adjust resistance values through software, leading to more dynamic and responsive designs. The digital potentiometer is ideal for applications such as adjusting volume, tuning filters, setting operational amplifier gain, or controlling screen brightness.

In conclusion, the DS1669S-10 from Maxim Integrated is a highly adaptable component that combines the convenience of digital control with the functionality of traditional potentiometers. Its precision, ease of use, and non-volatile memory make it an excellent choice for designers looking to add a reliable and efficient digital potentiometer to their electronic projects.
