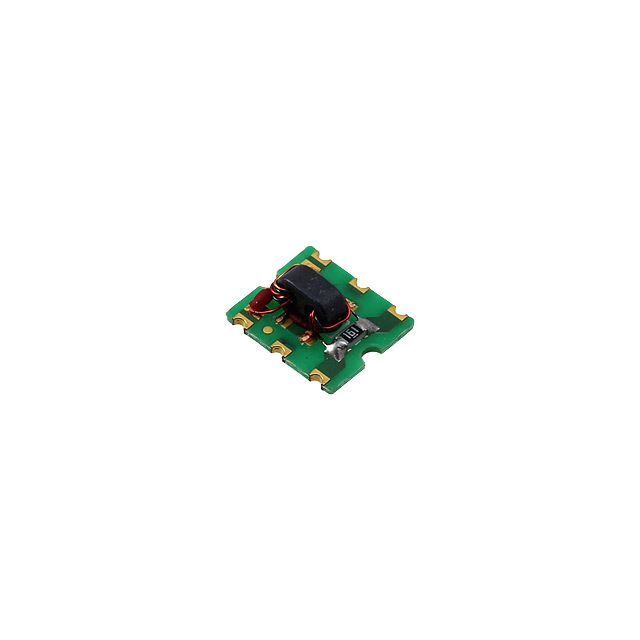

MAPDCT0029 M/A-Com Technology Solutions
Same model may have multiple batches, images only for reference.

MAPDCT0029

Part No MAPDCT0029
Manufacturer M/A-Com Technology Solutions
Catalog RF Power Dividers/Splitters
Description RF POWER DIVIDER 5MHZ-1GHZ SM-55 / 2 Way 0º Power Divider 5-1000MHz
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer M/A-Com Technology Solutions
Packaging Cut Tape (CT)
Insertion Loss 0.7dB
Frequency 5MHz ~ 1GHz
Specifications Isolation (Min) 12dB
Dimension 0.250" L x 0.280" W (6.35mm x 7.11mm)
Manufacturer Package SM-55
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802637-MAPDCT0029
Ultra Librarian 3D Model Ultra Librarian MAPDCT0029 CAD Model

Description

The M/A-Com Technology Solutions RF isolator is an electronic component used to protect RF components.

  • Frequency Range: 5MHz to 1GHz
  • Minimum Isolation: 12dB
  • Insertion Loss: 0.7dB
  • Dimensions: 0.250" L x 0.280" W (6.35mm x 7.11mm)
  • Packaging: Cut Tape
