Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tray
Coil Type Non Latching
Coil Current 353mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 120A
Switching Voltage 400VDC - Nom
Must Operate Voltage 9 VDC
Must Release Voltage 1 VDC
Operate Time 50ms
Release Time 30ms
Mounting Style Chassis Mount
Termination Style Stud
Temperature Range - Operating -40°C ~ 80°C
Coil Power 4.2W
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Win Source Part Number 1142811-AEV14012W
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AEV14012W CAD Model

Description

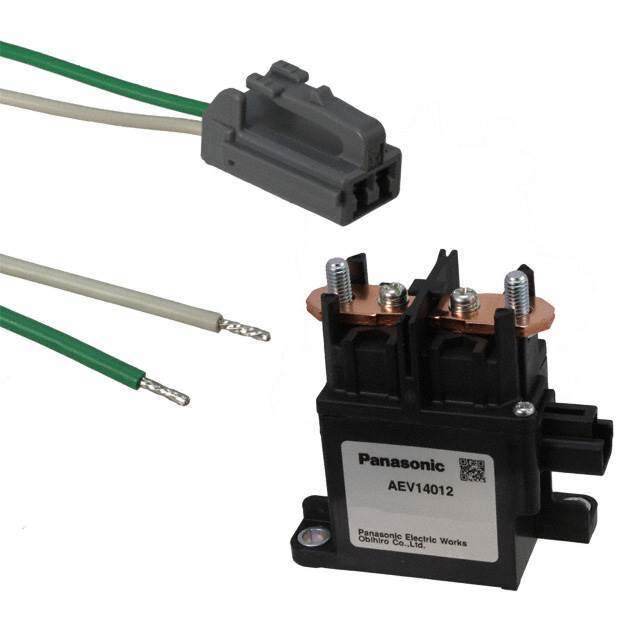

The AEV14012W is a Panasonic Electric Works' high power relay designed for use in automotive and industrial applications.

  • Contact Rating: 120A
  • Voltage: 12VDC
  • Termination Style: Stud
  • Mounting Style: Chassis Mount
  • Relay Type: SPST-NO
