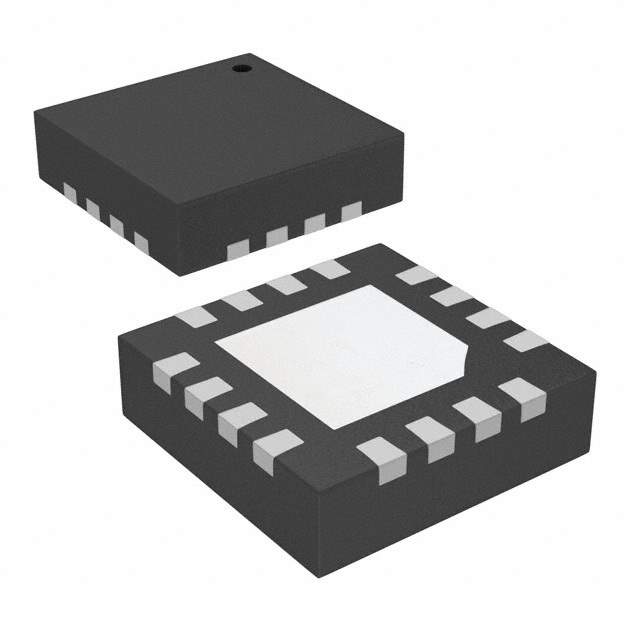

MAAL-010528-000000 Real Image
Same model may have multiple batches, images only for reference.

MAAL-010528-000000

Part No MAAL-010528-000000
Manufacturer M/A-Com Technology Solutions
Catalog RF Amplifiers
Description IC RF AMP GP 8GHZ-12GHZ 16QFN / RF Amplifier IC General Purpose 8GHz ~ 12GHz 16-PQFN (3x3)
Datasheet
MAAL-010528-000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Amplifiers
Mfr MACOM Technology Solutions
Package Strip
Frequency 8GHz ~ 12GHz
P1dB 14dBm
Gain 20dB
Noise Figure 1.6dB
RF Type General Purpose
Voltage - Supply 4V
Current - Supply 60mA
Mounting SMD (SMT)
Package / Case 16-VFQFN Exposed Pad
Supplier Device Package 16-PQFN (3x3)
Base Product Number MAAL-010528
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Other Names 1465-1058
Standard Package 20
Win Source Part Number 1015748-MAAL-010528-000000
Ultra Librarian 3D Model Ultra Librarian MAAL-010528-000000 CAD Model

Description

The MAAL-010528 electronic component is an RF amplifier that operates at a frequency range of 8GHz to 12GHz.

  • Frequency Range: 8GHz to 12GHz
  • Gain: 20dB
  • Noise Figure: 1.6dB
  • Current Supply: 60mA
  • Voltage Supply: 4V
  • Package: 16-VFQFN exposed pad package
  • Standard Package: 20
