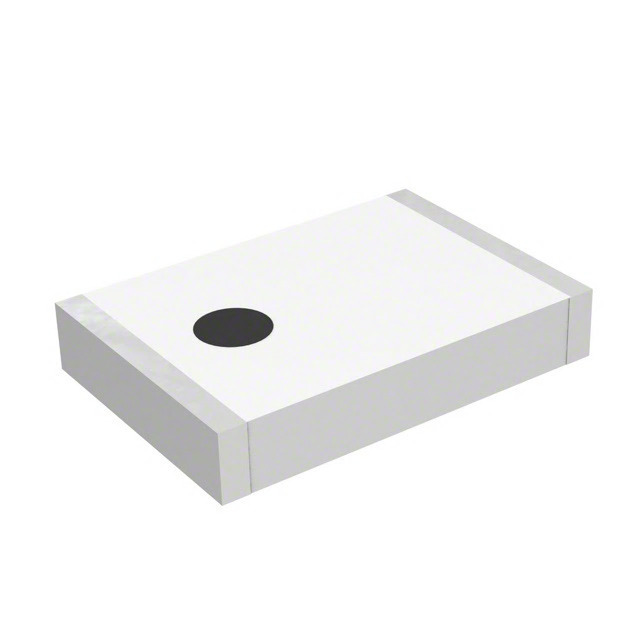

Same model may have multiple batches, images only for reference.
MA4P7470F-1072T M/A-Com Technology Solutions
Same model may have multiple batches, images only for reference.

MA4P7470F-1072T

Part No MA4P7470F-1072T
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description Non Magnetic SMQ HIPAX PIN Diode | RF DIODE PIN 800V 4W
Datasheet
MA4P7470F-1072T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer M/A-Com Technology Solutions
Packaging Reel
Diode Type PIN - Single
Voltage - Peak Reverse (Maximum) 800V
Current - Max 150mA
Capacitance at Vr, F 0.7pF at 100V, 100MHz
Resistance at If, F 800mOhm at 100mA, 100MHz
Power Dissipation (Maximum) 4W
Temperature Range - Operating 175°C
Manufacturer Package 2-SMD
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1211456-MA4P7470F-1072T
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MA4P7470F-1072T CAD Model

Description

The 1211456-MA4P7470F-1072T is a medium popularity electronic component manufactured by M/A-Com Technology Solutions.

  • Description: This component is widely used in discrete semiconductor products.
  • Maximum Power Dissipation: 4W
  • Voltage Peak Reverse: 800V
  • Capacitance: 0.7pF @ 100V, 100MHz
  • Description: This component is perfect for various electronic applications that require a reliable and efficient component.
