Same model may have multiple batches, images only for reference.

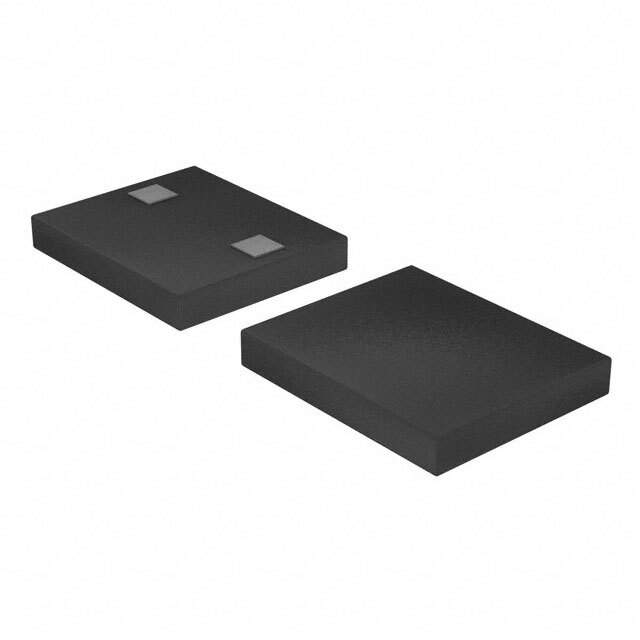

MA4AGSW1 Real Image
Same model may have multiple batches, images only for reference.

MA4AGSW1

Part No MA4AGSW1
Manufacturer M/A-Com Technology Solutions
Catalog RF Switches
Description IC RF SWITCH SPST 50GHZ DIE / AlGaAs SPST Reflective PIN Diode Switch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer M/A-Com Technology Solutions
Packaging Bulk
RF Type General Purpose
Topology Reflective
Circuit SPST
Frequency Range 50MHz ~ 50GHz
Isolation 46dB
Insertion Loss 0.3dB
Test Frequency 50GHz
Temperature Range - Operating -55°C ~ 125°C
Manufacturer Package Die
Supplier Device Package Die
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 808899-MA4AGSW1
Ultra Librarian 3D Model Ultra Librarian MA4AGSW1 CAD Model

Description

The MA4AGSW1, manufactured by M/A-Com Technology Solutions, is a high-performance SPST reflective switch designed for use in general-purpose RF applications.

  • Switch Type: SPST Reflective
  • Frequency Range: 50MHz to 50GHz
  • Test Frequency: 50GHz
  • Insertion Loss: 0.3dB
  • Isolation: 46dB
  • Packaging: Bulk
  • Supplier Device Package: Die
  • Operating Temperature: -55°C to 125°C
