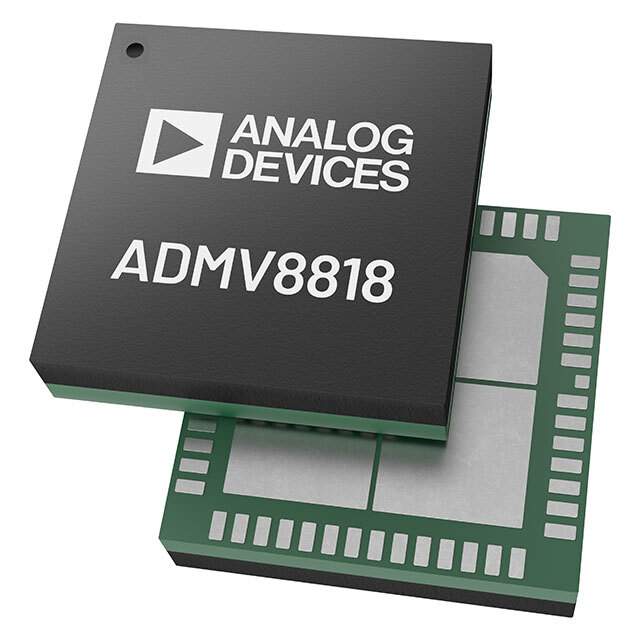

ADMV8818SCCZ-EP

Part No ADMV8818SCCZ-EP
Manufacturer Analog Devices Inc.
Catalog RF Switches
Description 2 TO 18 GHZ MULTI OCTAVE SWITCHE / RF Switch IC Radar 4 x SP5T 50Ohm 56-LGA (9x9)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Switches
Mfr Analog Devices Inc.
Package Tray
RF Type Radar
Circuit 4 x SP5T
Frequency Range 2GHz ~ 18GHz
Insertion Loss -14.6dB
Test Frequency 18GHz
IIP3 45dBm
Impedance 50Ohm
Voltage - Supply ±2.4V ~ 2.6V, 3.2V ~ 3.4V
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Surface Mount
Package / Case 56-TFLGA Exposed Pad
Supplier Device Package 56-LGA (9x9)
Base Product Number ADMV8818
Standard Package 1
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1345504-ADMV8818SCCZ-EP
Ultra Librarian 3D Model Ultra Librarian ADMV8818SCCZ-EP CAD Model

Description

ADMV8818SCCZ-EP - High-Performance Microwave Bandpass Filter

The ADMV8818SCCZ-EP is a state-of-the-art microwave bandpass filter designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This product is specifically engineered for demanding environments and applications that require robust and reliable signal filtering solutions.

Key Features:

  • Frequency Range: The ADMV8818SCCZ-EP operates over a wide frequency range from 2 GHz to 18 GHz, making it suitable for a variety of RF and microwave applications.
  • Programmable Filter: This filter is fully programmable, allowing for precise control over the passband and stopband frequencies to meet specific system requirements.
  • High Rejection: With excellent rejection capabilities, the ADMV8818SCCZ-EP ensures that unwanted signals are effectively attenuated, providing a clean and interference-free passband.
  • Low Insertion Loss: The filter is designed to have low insertion loss, minimizing the impact on the signal strength and ensuring efficient signal transmission.
  • Temperature Stability: Engineered to perform consistently across a wide temperature range, this product is ideal for use in extreme environmental conditions.
  • Enhanced Performance (EP) Version: As part of the EP series, the ADMV8818SCCZ-EP is built to meet stringent performance standards, making it suitable for high-reliability applications such as aerospace and defense.
  • Surface-Mount Package: The compact, surface-mount design allows for easy integration into a variety of circuit boards and systems.

Applications:

The versatility of the ADMV8818SCCZ-EP makes it an ideal choice for a broad range of applications, including:

  • Electronic Warfare (EW) Systems
  • Test and Measurement Equipment
  • Commercial and Military Radar Systems
  • Satellite Communications
  • RF Front-End Modules

Quality and Reliability:

Analog Devices Inc. is committed to delivering products that exceed industry standards for quality and reliability. The ADMV8818SCCZ-EP is rigorously tested and qualified for enhanced performance applications, ensuring that it meets the high expectations of customers in critical industries.

With its advanced features and proven performance, the ADMV8818SCCZ-EP from Analog Devices Inc. is an exceptional choice for those seeking a high-quality, programmable microwave bandpass filter for their next-generation systems.
