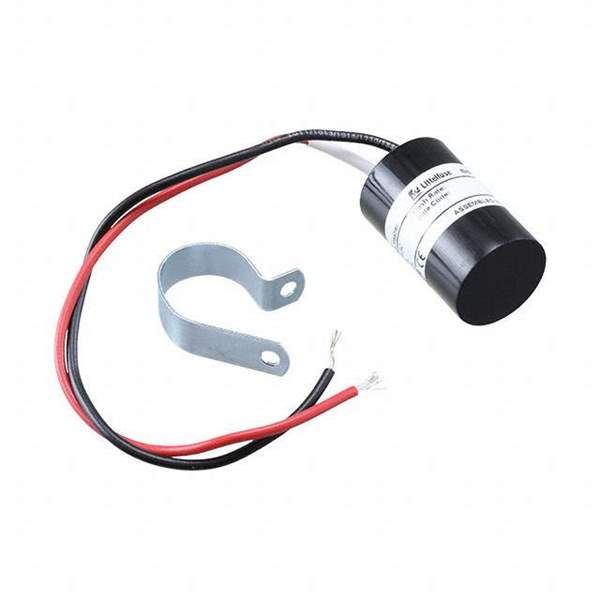

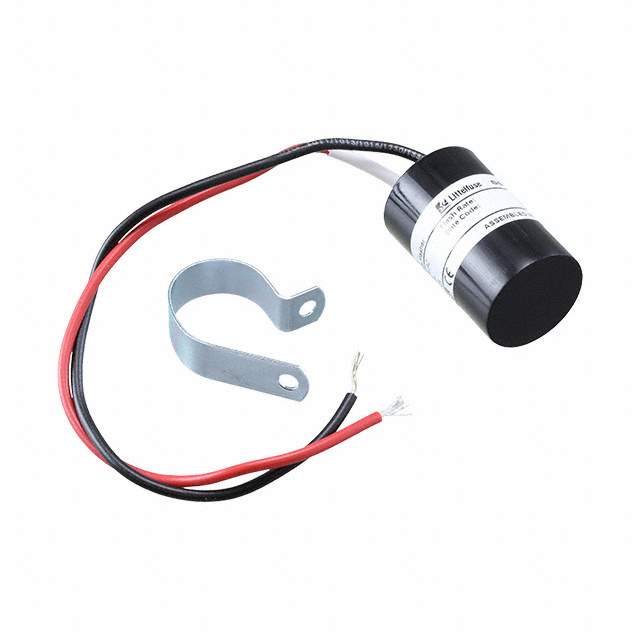

FS146RC Real Image
Same model may have multiple batches, images only for reference.

FS146RC

Part No FS146RC
Manufacturer Littelfuse Inc.
Catalog Time Delay Relays
Description RELAY TIME DELAY 75FPM CHASSIS / Repeat Cycle Time Delay Relay SPST-NO (1 Form A) Fixed, 75 FPM Delay Chassis Mount
Datasheet
FS146RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr Littelfuse Inc.
Series FS100
Package Bulk
Mounting Type Chassis Mount
Relay Type Solid State Relay
Function Repeat Cycle
Circuit SPST-NO (1 Form A)
Delay Time Fixed, 75 FPM
Voltage - Supply 24VAC
Termination Style Wire Leads
Timing Adjustment Method Fixed
Timing Initiate Method Input Voltage
MSL Level Not Applicable
ECCN EAR99
HTSUS 8543.70.9860
Other Names -1024-FS146RC,F10527
Standard Package 1
Win Source Part Number 1059794-FS146RC
Ultra Librarian 3D Model Ultra Librarian FS146RC CAD Model

Description

The Littelfuse Inc. FS146RC is a solid state relay from the FS100 series that is part of the Industrial Automation and Controls>Time Delay Relays category.

  • Win source part number: 1059794-FS146RC
  • Fixed delay time: 75 FPM
  • Voltage supply: 24VAC
  • Mounting: wire leads
  • Function: repeat cycle
  • Circuit: SPST-NO (1 Form A)
