Same model may have multiple batches, images only for reference.

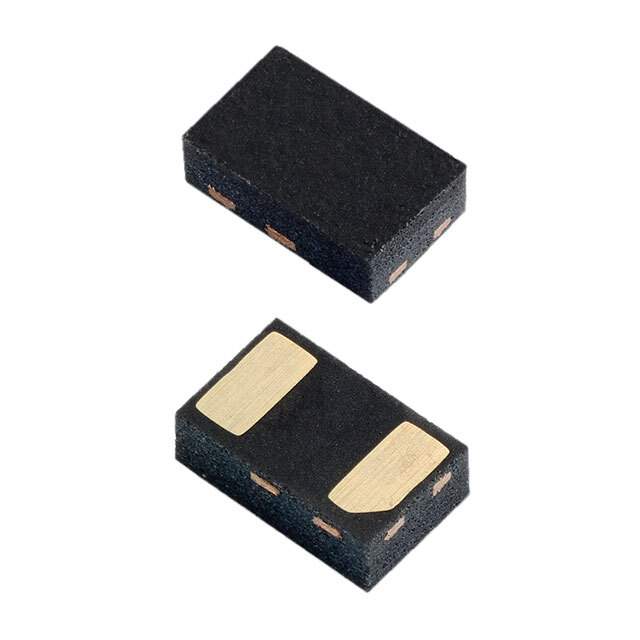

SP1105S-01UTG Real Image
Same model may have multiple batches, images only for reference.

SP1105S-01UTG

Part No SP1105S-01UTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 9.2VC 2DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 45 Weeks
Features 9.2V (Typ) Clamp 80A (8/20µs) Ipp Tvs Diode Surface Mount 2-DFN (1.6x1)
Manufacturer Littelfuse Inc.
Series SPA®
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 0603 (1610 Metric)
Case / Package 2-DFN (1.6x1)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number -SP1105S-01UTG, F10112CT, F10112DKR, F10112TR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934702-SP1105S-01UTG
Ultra Librarian 3D Model Ultra Librarian SP1105S-01UTG CAD Model

Description

The Littelfuse Inc. 934702-SP1105S-01UTG is a SPA series TVS diode that is designed to protect sensitive electronics from voltage spikes and surges.

  • Clamp: 9.2V
  • Ipp: 80A (8/20µs)
  • Mounting: Surface Mountable
  • Package: 2-DFN (1.6x1)
  • Supply and Demand Status: Balanced
  • Estimated Production Lead Time: 45 weeks
  • HTSUS: 8541.10.0080
  • Category: Circuit protection
