Same model may have multiple batches, images only for reference.

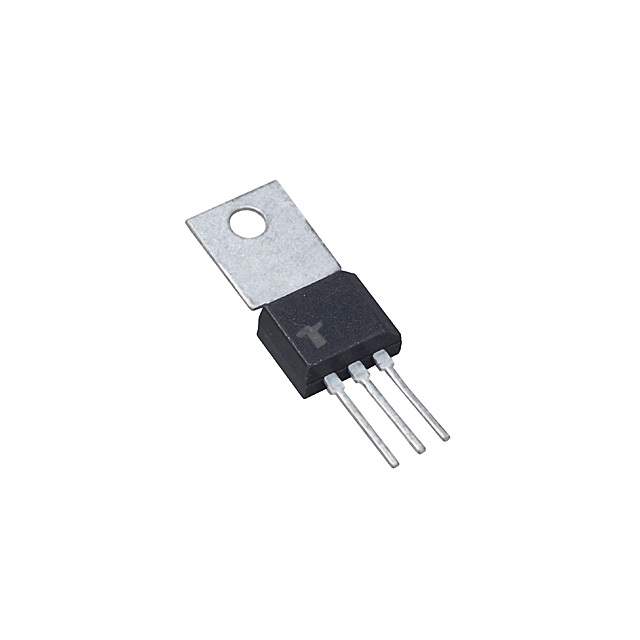

S4010FS31 Real Image
Same model may have multiple batches, images only for reference.

S4010FS31

Part No S4010FS31
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Datasheet
S4010FS31 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Littelfuse Inc.
Package Bulk
Product Status Obsolete
Voltage - Off State 400 V
Voltage - Gate Trigger (Vgt) (Max) 800 mV
Current - Gate Trigger (Igt) (Max) 500 µA
Voltage - On State (Vtm) (Max) 1.6 V
Current - On State (It (AV)) (Max) 6.4 A
Current - On State (It (RMS)) (Max) 10 A
Current - Hold (Ih) (Max) 8 mA
Current - Off State (Max) 5 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 83A, 100A
SCR Type Sensitive Gate
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case TO-202 Long Tab
Supplier Device Package TO-202
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1278972-S4010FS31
Ultra Librarian 3D Model Ultra Librarian S4010FS31 CAD Model

Description

This SCR (Sensitive Gate) from Littelfuse Inc. is designed for use in Discrete Semiconductor Products>Thyristors - SCRs.

  • Maximum Voltage: 400 V
  • Maximum Current: 6.4 A
  • Package: TO-202 Long Tab
  • Standard Package Size: 500
  • Temperature Range: -40°C ~ 110°C
  • Current Hold (Ih): 8 mA
  • Voltage Off State: 400 V
  • Voltage Gate Trigger (Vgt): 800 mV
  • Current Gate Trigger (Igt): 500 µA
  • Voltage On State (Vtm): 1.6 V
  • Maximum Current On State (It (AV)): 6.4 A
  • Maximum Current On State (It (RMS)): 10 A
  • Current Off State (Max): 5 µA
  • Current Non-Rep. Surge 50, 60Hz (Itsm): 83A, 100A
