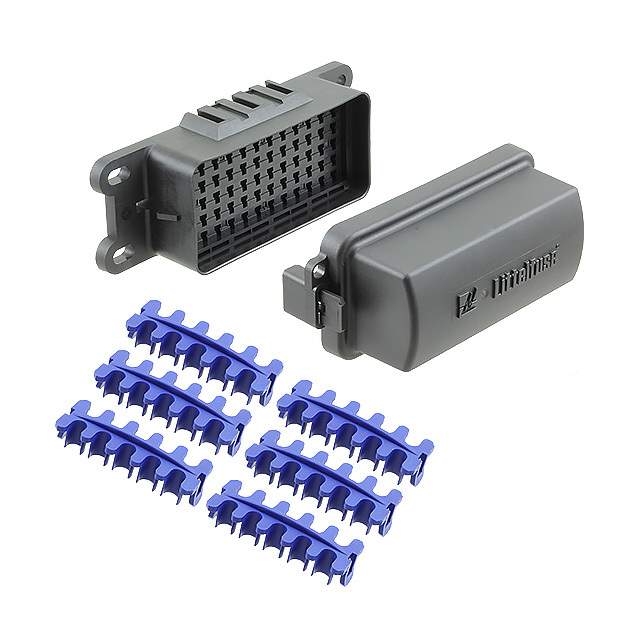

PDM21001LXM Real Image
Same model may have multiple batches, images only for reference.

PDM21001LXM

Part No PDM21001LXM
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description HWB60 WITH TPAS BULK
Datasheet
PDM21001LXM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Status Active
Fuseholder Type Holder
Fuse Type Blade
For Use With/Related Products 280 Style Components
Number of Circuits 60
Current Rating 30A
Mounting Chassis Mount
Termination Style Bolt Down
Win Source Part Number 1064807-PDM21001LXM
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PDM21001LXM CAD Model

Description

The Littelfuse Inc. PDM21001LXM is a 30A blade fuse designed for use with 280 style components.

  • Current: 30A
  • Style: Blade Fuse
  • Component Style: 280
  • Mounting: Bolt Down
  • Contact Finish: None
  • Fuseholder Type: Holder
  • Number of Circuits: 60
  • Supply and Demand: Well-balanced
  • Popularity: Medium
  • Win Source Part Number: 1064807-PDM21001LXM
