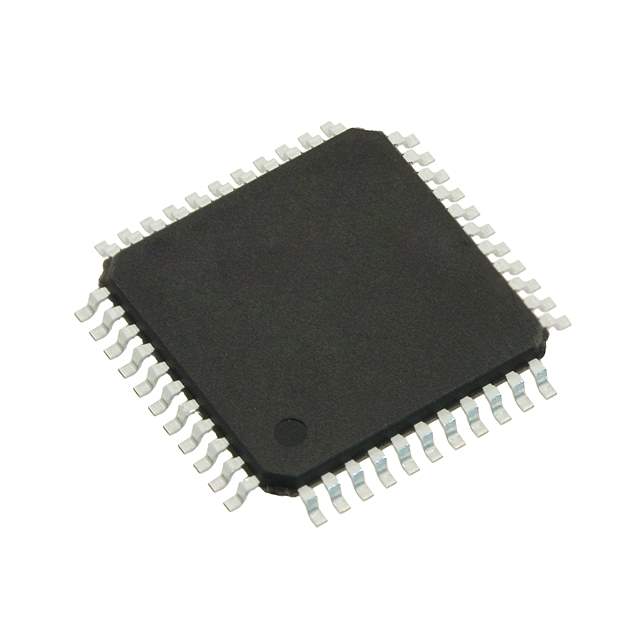

XC9536XV-5VQ44C Real Image
Same model may have multiple batches, images only for reference.

XC9536XV-5VQ44C

Part No XC9536XV-5VQ44C
Manufacturer Xilinx Inc.
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description 36 macrocells with 800 usable gates
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Xilinx Inc.
Series XC9500XV
Packaging Tray
Part Status Obsolete(EOL)
Programmable Type In System Programmable
Delay Time tpd(1) Max 5.0ns
Voltage Supply - Internal 2.37 V ~ 2.62 V
Number of Logic Elements/Blocks 2
Number of Macrocells 36
Number of Gates 800
Number of I/O 34
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 44-TQFP
Manufacturer Package 44-VQFP (10x10)
Win Source Part Number 1282003-XC9536XV-5VQ44C
Manufacturer Homepage www.xilinx.com
Popularity Medium
Supply and Demand Status Limited
Family Name XC9536XV
Introduction Date May 01, 1996
Country of Origin Japan, Philippines, Republic of Korea, Taiwan
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian XC9536XV-5VQ44C CAD Model

Description

The XC9536XV-5VQ44C is an obsolete in-system programmable complex programmable logic device (CPLD) from Xilinx Inc.

  • Maximum Delay Time: 5.0ns
  • Voltage Supply: 2.37V to 2.62V
  • Gates: 800
  • Input/Output Pins: 34
  • Macrocells: 36
  • Package: 44-TQFP
  • Temperature Range: 0°C to 70°C
