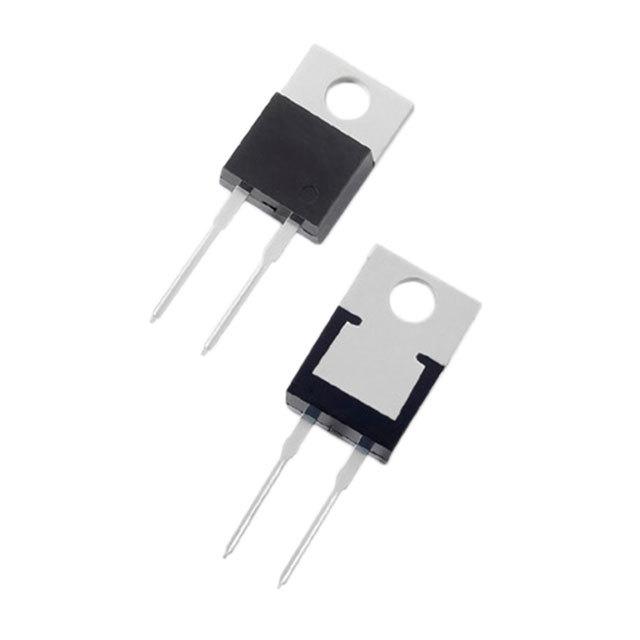

LFUSCD08065A Littelfuse Inc.
Same model may have multiple batches, images only for reference.

LFUSCD08065A

Part No LFUSCD08065A
Manufacturer Littelfuse Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SIC SCHOTTKY 650V 8A TO220
Datasheet
LFUSCD08065A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Tube/Rail
Status Active
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 650V
Current - Average Rectified (Io) 8A (DC)
Voltage - Forward (Vf) (Max) @ If 1.7V @ 8A
Speed(Frequency) No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 230μA @ 650V
Capacitance @ Vr, F 260pF @ 1V, 1MHz
Mounting Through Hole
Case / Package TO-220AC
Operating Temperature - Junction 175°C (Max)
Win Source Part Number 1094905-LFUSCD08065A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LFUSCD08065A CAD Model

Description

The LFUSCD08065A silicon carbide schottky diode is a through-hole type diode from Littelfuse Inc.

  • Manufacturer: Littelfuse Inc.
  • Product Name: LFUSCD08065A
  • Type: Schottky Diode
  • Mounting Type: Through-Hole
  • Package: TO-220AC
  • Voltage - DC Reverse (Vr) (Max): 650V
  • Current - Average Rectified (Io): 8A (DC)
  • Voltage - Forward (Vf) (Max) @ If: 1.7V @ 8A
  • Reverse Recovery Time (trr): 0ns
  • Current - Reverse Leakage @ Vr: 230μA @ 650V
  • Capacitance @ Vr, F: 260pF @ 1V, 1MHz
  • Operating Temperature: 175°C (Max)
  • Application: Discrete Semiconductor Products
