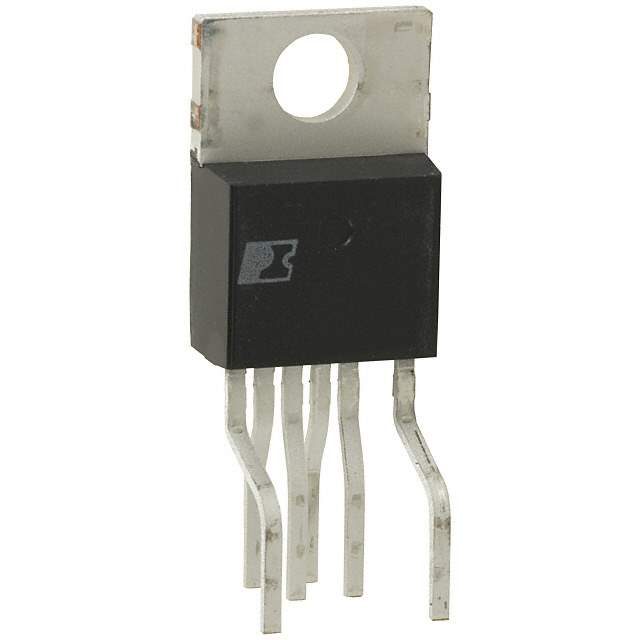

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Bulk
Status Obsolete
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 66.5%
Switching Frequency 66kHz ~ 132kHz
Power (W) 125W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Features Frequency Control
Temperature Range - Operating -40°C ~ 150°C
Manufacturer Package TO-220-7 (Formed Leads), 6 Leads
Supplier Device Package TO-220-7C
Mounting Style Through Hole
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Win Source Part Number 1271628-TOP246Y
Manufacturer Homepage www.powerint.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TOP246Y CAD Model

Description

The TOP246Y is a flyback topology power supply integrated circuit from Power Integrations.

  • Mounting Style: through hole
  • Output: isolated
  • Internal Switches: yes
  • Voltage Breakdown: 700V
  • Duty Cycle: 66.5%
  • Fault Protection: current limiting, over temperature, and over voltage protection
  • Frequency Control Features: yes
  • Switching Frequency: ranges from 66kHz to 132kHz
  • Power: up to 125W
  • Status: obsolete
  • Popularity: medium
  • Supplier Device Package: TO-220-7C
  • MSL Level: 1 (unlimited)
