Same model may have multiple batches, images only for reference.

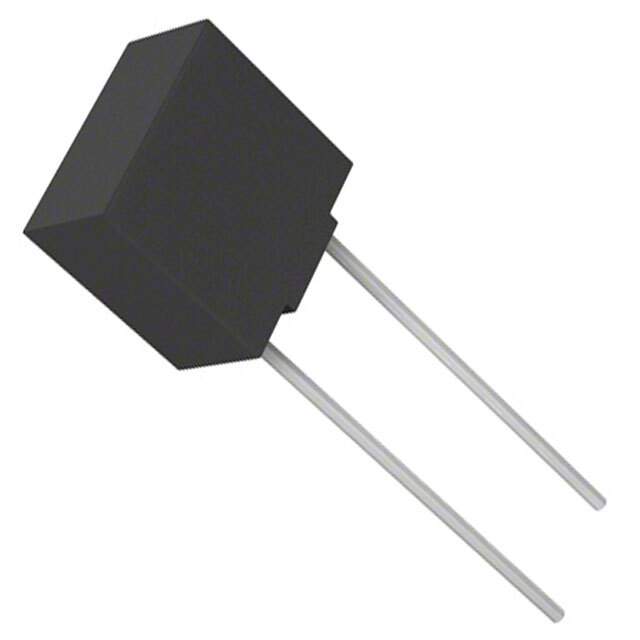

39611000000 Real Image
Same model may have multiple batches, images only for reference.

39611000000

Part No 39611000000
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MNT 1A 125VAC RADIAL / 1 A 125 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Box
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series TE5® 396
Package Cut Tape (CT)Tape & Box (TB)
Product Status Active
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1 A
Voltage Rating - AC 125 V
Response Time Slow Blow
Package / Case Radial, Box
Breaking Capacity @ Rated Voltage 100A
Melting I2t 3.25
Approval Agency cUL, PSE/JET, UL
Temperature Range - Operating -40°C ~ 85°C
Size / Dimension 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm)
DC Cold Resistance 0.0868 Ohms
Standard Package 1,400 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Win Source Part Number 855860-39611000000
Ultra Librarian 3D Model Ultra Librarian 39611000000 CAD Model

Description

The 855860-39611000000 is a TE5® 396 series board mount fuse from Littelfuse Inc.

  • Series: TE5® 396
  • Fuse Type: Board Mount
  • Voltage Rating: 125V AC
  • Current Rating: 1A
  • Response Time: Slow Blow
  • Breaking Capacity: 100A @ rated voltage
  • DC Cold Resistance: 0.0868 Ohms
  • Operating Temperature: -40°C to 85°C
  • Mounting: Through Hole
  • Package: Radial, Box
  • Approvals: cUL, PSE/JET, and UL
