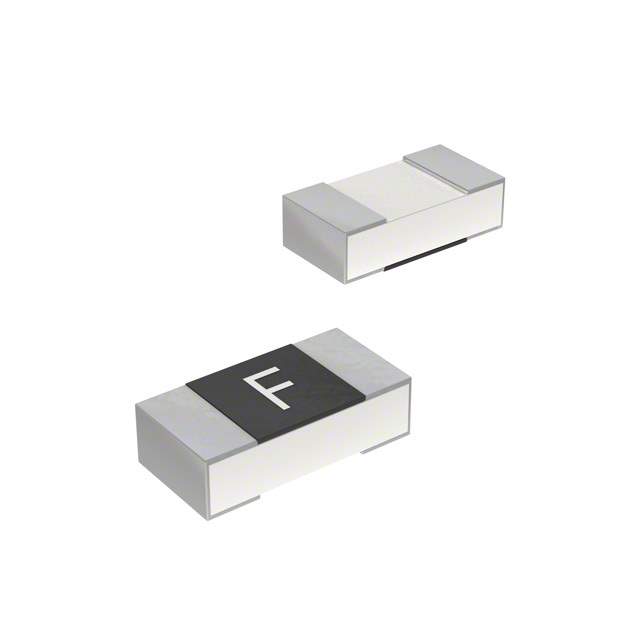

SF-0603S300-2 Real Image SF-0603S300-2 label picture
Same model may have multiple batches, images only for reference.
SF-0603S300-2 Real Image SF-0603S300-2 label picture
SF-0603S300-2 Real Image SF-0603S300-2 label picture
Same model may have multiple batches, images only for reference.

SF-0603S300-2

Part No SF-0603S300-2
Manufacturer Bourns Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 3A 32VDC 0603
Datasheet
SF-0603S300-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 3A
Voltage Rating - DC 32V
Response Time Slow Blow
Manufacturer Package 0603
Mounting Style SMD
Breaking Capacity at Rated Voltage 50A
Melting I2t 0.21
Approvals UL
Temperature Range - Operating -20°C ~ 105°C
Dimension 0.063" L x 0.032" W x 0.018" H (1.60mm x 0.80mm x 0.45mm)
DC Cold Resistance 0.016 Ohms
Part Number Series SF-0603
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802550-SF-0603S300-2
Ultra Librarian 3D Model Ultra Librarian SF-0603S300-2 CAD Model

Description

The Bourns Inc. SF-0603S300-2 is a slow-blow board mount fuse with a voltage rating of 32V and a current rating of 3A.

  • Voltage Rating: 32V
  • Current Rating: 3A
  • DC Cold Resistance: 0.016 Ohms
  • Breaking Capacity: 50A @ Rated Voltage
  • Response Time: Suitable for inrush currents
  • Approval: UL
  • Temperature Range: -20°C to 105°C
  • Package: 0603
  • Packaging: Reel
  • Manufacturer Pack Quantity: 5,000
  • Popularity: High
  • Supply and Demand: Balanced
