Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Cut Tape (CT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2A
Voltage Rating - AC 250V
Response Time Slow Blow
Manufacturer Package Radial, Can, Vertical
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 100A
Melting I2t 17.8
Approvals CCC, cURus, KC, PSE/JET, SEMKO, VDE
Temperature Range - Operating -40°C ~ 85°C
Parts Dimension 0.335" Dia x 0.315" H (8.50mm x 8.00mm)
DC Cold Resistance 0.028 Ohms
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1128330-38212000000
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 38212000000 CAD Model

Description

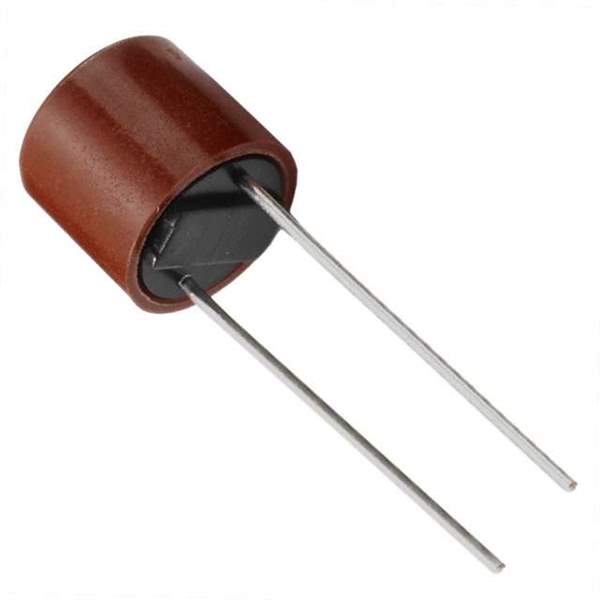

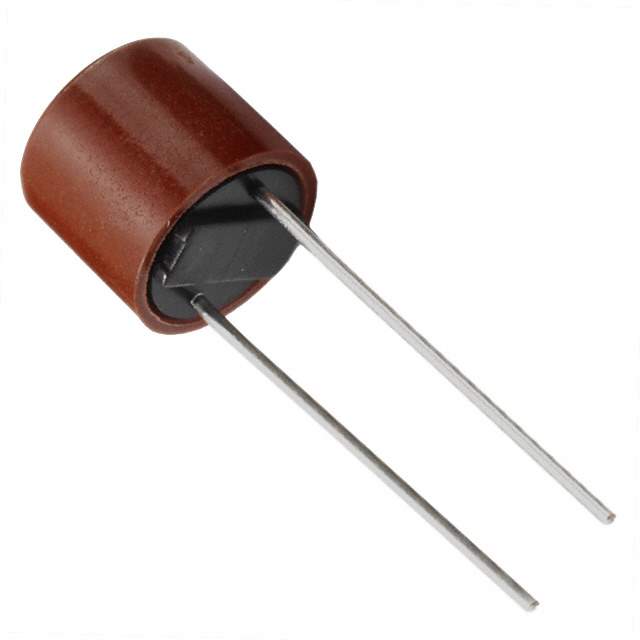

The Littelfuse Inc. 1128330-38212000000 is a through-hole mounted fuse designed for circuit protection.

  • Manufacturer: Littelfuse Inc.
  • Mounting Type: through-hole
  • Voltage Rating: 250V
  • Current Rating: 2A
  • DC Cold Resistance: 0.028 Ohms
  • Response Time: slow blow
  • Melting I2t: 17.8
  • Approvals: CCC, cURus, KC, PSE/JET, SEMKO, and VDE
  • Applications: power supplies, lighting, and motor control circuits
