Same model may have multiple batches, images only for reference.

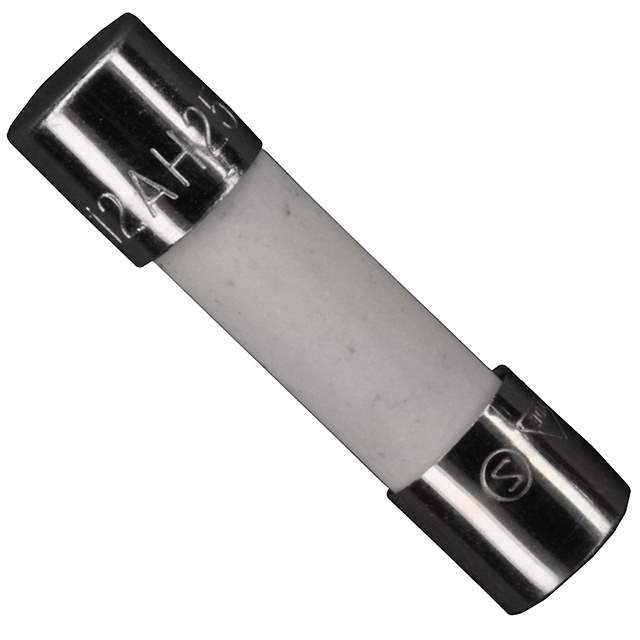

0215010.MXP Real Image
Same model may have multiple batches, images only for reference.

0215010.MXP

Part No 0215010.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 10A 250VAC 5X20MM / 215 Series, 5 x 20 mm, Time-Lag (Slo-Blo®) Fuse
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 10A
Voltage Rating - AC 250V
Response Time Slow Blow
Manufacturer Package 5mm x 20mm
Mounting Style Holder
Breaking Capacity at Rated Voltage 1.5kA
Melting I2t 333.565
Approvals CE, CSA, KC, PSE, SEMKO, UL, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0066 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801098-0215010.MXP
Ultra Librarian 3D Model Ultra Librarian 0215010.MXP CAD Model

Description

The Littelfuse Inc. 801098-0215010.MXP is a high-popularity electronic component with a sufficient supply and demand status.

  • Type: Cartridge, Ceramic
  • Voltage Rating: 250V
  • Current Rating: 10A
  • Operating Temperature: -55°C to 125°C
  • Dimension: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
  • Applications: Various
