Same model may have multiple batches, images only for reference.

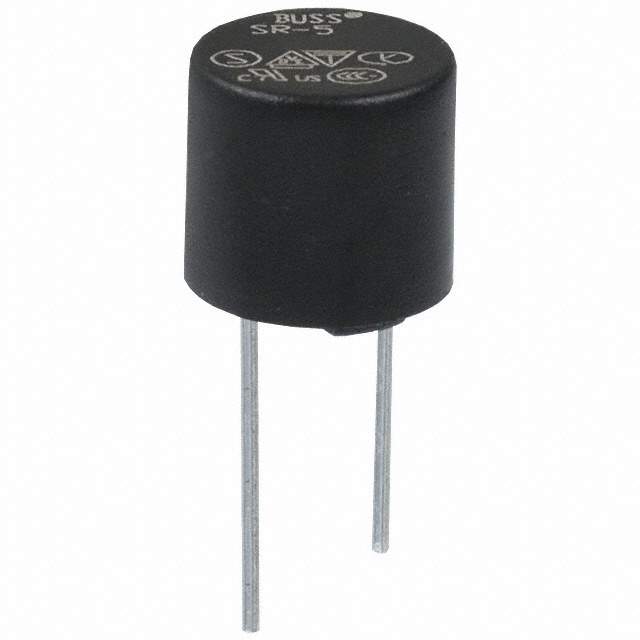

SR-5-3.15A-AP Real Image
Same model may have multiple batches, images only for reference.

SR-5-3.15A-AP

Part No SR-5-3.15A-AP
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BRD MNT 3.15A 250VAC RADIAL / Fuse Subminiature Slow Blow Acting 3.15A 250V Radial 8.5 X 7.6mm Ammo CCC/PSE/SEMKO/VDE/cULus
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton
Series SR-5
Packaging Tape in Box
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 3.15A
Voltage Rating - AC 250V
Response Time Slow
Package Radial, Can, Vertical
Mounting Style Through Hole
Breaking Capacity @ Rated Voltage 35A
Melting I2t 57
Approvals CCC, cULus, KC-MARK, PSE, SEMKO, VDE
Operating Temperature Range -40°C ~ 85°C
Dimension 0.335" Dia x 0.319" H (8.50mm x 8.10mm)
Resistance 0.018 Ohm
Win Source Part Number 795364-SR-5-3.15A-AP
Popularity Medium
Supply and Demand Status Limited
Family Name SR-5
Introduction Date April 19, 2006
ECCN EAR99
Country of Origin China
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SR-5-3.15A-AP CAD Model

Description

The Eaton SR-5-3.15A-AP fuse is manufactured by Eaton.

  • Current: 3.15A
  • Voltage: 250V
  • Mounting: Through hole
  • Series: SR-5
  • Operating Temperature: -40°C to 85°C
  • Breaking Capacity @ Rated Voltage: 35A
  • Melting I2t: 57
  • Packaging: Tape in box
  • Approvals: CCC, cULus, KC-MARK, PSE, SEMKO, VDE
  • Family Name: SR-5
  • Category: Circuit Protection
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand: Limited
