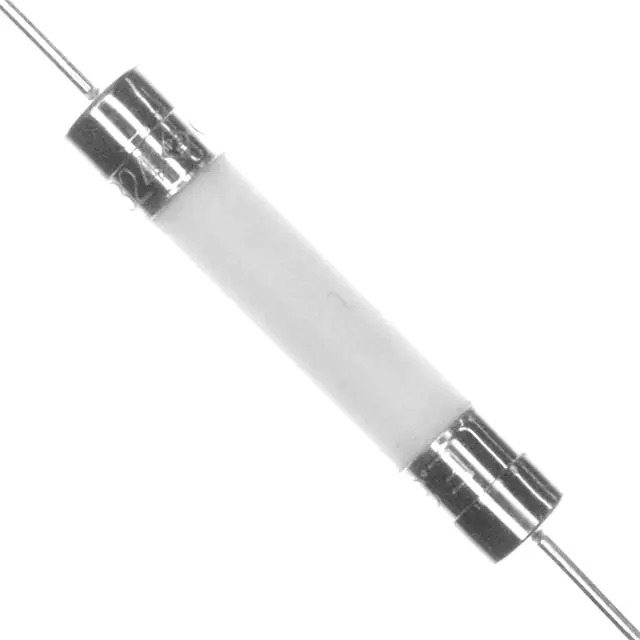

0324025.MX280P Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0324025.MX280P

Part No 0324025.MX280P
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 25A 280VAC 125VDC 3AB / 25 A 280 V AC 125 V DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 324
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 25 A
Voltage Rating - AC 280 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Breaking Capacity @ Rated Voltage 50A AC, 400A DC
Melting I²t 1450
Approval Agency CE, UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
DC Cold Resistance 0.00235 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361444-0324025.MX280P
Ultra Librarian 3D Model Ultra Librarian 0324025.MX280P CAD Model

Description

The 0324025.MX280P is a ceramic cartridge fuse from the 324 series manufactured by Littelfuse Inc.

  • Application: Electrical Circuit Protection
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 25A
  • Voltage Rating: 280V AC and 125V DC
  • Response Time: Fast Blow
  • Breaking Capacity (AC): 50A AC @ Rated Voltage
  • Breaking Capacity (DC): 400A DC @ Rated Voltage
  • Mounting: Through-Hole
  • Packaging: Bulk
  • Approvals: CE and UL
