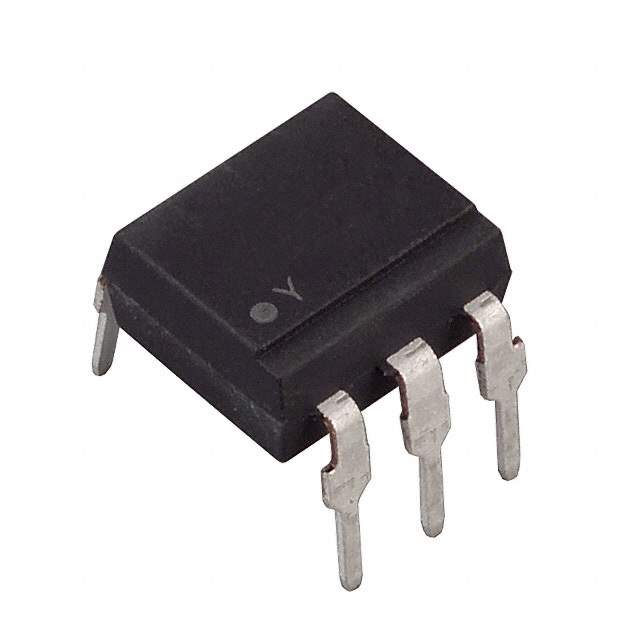

Same model may have multiple batches, images only for reference.

MOC3022

Name: MOC3022
Brand: Lite-On Inc.
SKU: 238268
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MOC3022
Manufacturer	Lite-On Inc.
Catalog	Optoisolators - Triac, SCR Output
Description	OPTOISOLATOR 5KV TRIAC 6SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	Lite-On Inc.
Packaging	Reel - TR
Status	Active
Output Type	Triac
Zero Crossing Circuit	No
Number of Channels	1
Isolation Voltage	5000Vrms
Voltage - Off State	400V
Static dV/dt (Min)	1kV/μs
Current - LED Trigger (Ift) (Max)	10mA
Current - Hold (Ih)	250μA (Typ)
Forward Voltage	1.15V
Continuous forward current- Max	50mA
Temperature Range - Operating	-40°C to 100°C
Mounting	SMD (SMT)
Case / Package	6-SMD
Approvals	CQC, CSA, TUV, UL, VDE
Win Source Part Number	059293-MOC3022
Popularity	Medium
Supply and Demand Status	Sufficient
Application Field	Used in Consumer Electronics, Motor Drive & Control, Industrial, Power Management, Lighting
Quantity per package	65
Ultra Librarian 3D Model	Ultra Librarian MOC3022 CAD Model

Description

The Lite-On Inc. 059293-MOC3022 is a single channel optocoupler that is designed to be used in various electronic applications that require galvanic isolation.

Market Popularity: Medium
Supply and Demand Status: Sufficient
Forward Voltage (Max): 1.15 V
Voltage Off State: 400 V
Continuous Forward Current: 50 mA
Isolation Voltage: 5000 Vrms
Applications: Consumer electronics, motor drive and control, industrial, power management, and lighting
