Linear Technology's LTC6803IG-3#TRPBF - Multicell Battery Monitor

The LTC6803IG-3#TRPBF is an advanced multicell battery stack monitor that plays a crucial role in the management and safety of rechargeable battery packs. Manufactured by Linear Technology, now part of Analog Devices, this high-performance integrated circuit is specifically designed to monitor up to 12 series-connected battery cells for overvoltage and undervoltage conditions, ensuring safe operation and longevity of the battery pack.

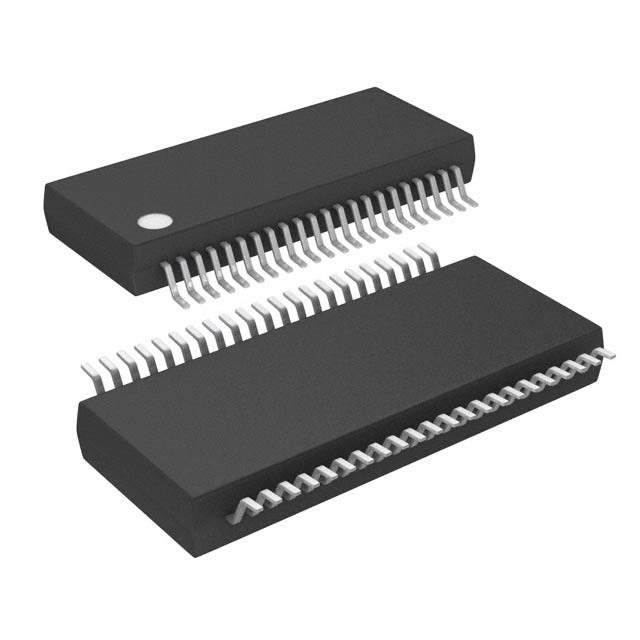

This robust battery monitor is housed in a compact 44-lead SSOP package, making it suitable for space-constrained applications. Its precision measurement capabilities allow for the monitoring of cell voltages with an accuracy of ±0.25% over the entire temperature range, ensuring reliable performance in a variety of operating conditions.

One of the standout features of the LTC6803IG-3#TRPBF is its ability to measure cell voltages simultaneously, which greatly reduces the complexity of the data acquisition system in a battery management system (BMS). This simultaneous measurement capability also helps to provide a more accurate state of charge (SOC) estimation for the battery, which is critical for performance and safety.

The device includes a high noise immunity and an inbuilt isoSPI interface, which allows for the safe and reliable communication of data even in high-noise environments. This makes it particularly well-suited for electric vehicles (EVs), hybrid electric vehicles (HEVs), and other applications where electrical noise is a concern.

Additionally, the LTC6803IG-3#TRPBF comes with a cascade feature that enables multiple devices to be connected in series without the need for optocouplers or isolators between stacked battery modules. This simplifies the design and reduces the cost of the overall system. The device operates over a wide temperature range of -40°C to +85°C, ensuring reliable monitoring in harsh environments.

Overall, the LTC6803IG-3#TRPBF from Linear Technology is an essential component for designers who require a reliable, accurate, and efficient solution for monitoring multicell battery packs in high-performance applications.
