Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Reel - TR
Status Active
Type Accelerator
Applications I2C
Input 2-Wire Bus
Output 2-Wire Bus
Data Rate (Max) 400kHz
Number of Channels 1
Supply Voltage - Operating 1.6 V to 5.5 V
Operating Supply Current 200μA
Temperature Range - Operating 0°C to 70°C
Case / Package SC-70-6
Win Source Part Number 072626-LTC4311CSC6#TRMPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LTC4311CSC6#TRMPBF CAD Model

Description

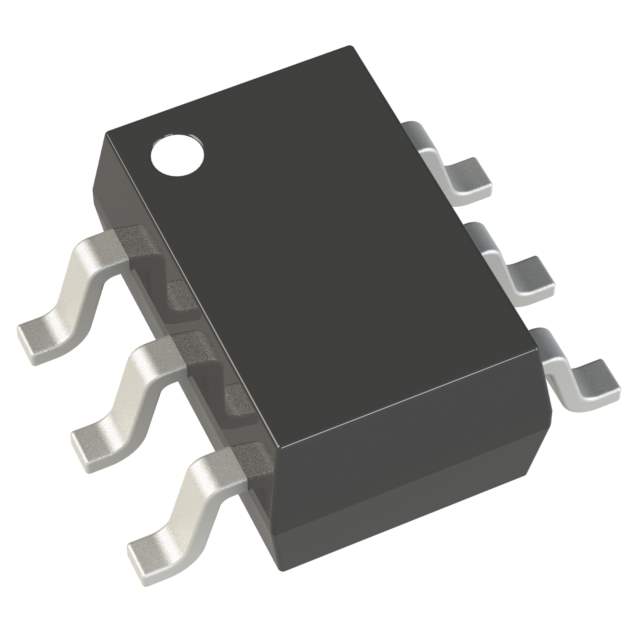

LTC4311CSC6#TRMPBF - I2C Active Terminator from Linear Technology

The LTC4311CSC6#TRMPBF is a high-performance I2C active terminator designed to enhance data communication on I2C buses. Manufactured by Linear Technology, a leader in analog integrated circuits, this product is specifically engineered to improve bus signal integrity by actively strengthening weak signals, thus allowing for extended cable lengths and an increased number of I2C devices on the bus.

Featuring a small SOT-23 package, the LTC4311CSC6#TRMPBF is ideal for compact designs where space is at a premium. It operates over a wide supply voltage range of 2.5V to 5.5V, making it versatile for various applications. The active pull-up circuitry within this device enables it to support both standard mode (100kHz) and fast mode (400kHz) I2C communications, ensuring compatibility with a broad range of I2C devices and systems.

The LTC4311CSC6#TRMPBF is equipped with a slew rate-limited rise time accelerator, which not only improves the rise time of the I2C signals but also reduces the noise susceptibility of the bus. This feature is particularly beneficial in noisy environments or when operating over long cables where signal integrity can be compromised. Additionally, the device includes automatic disconnect during power-up and power-down, which prevents corrupt data and unintended communication on the bus during these transient states.

Another key feature of the LTC4311CSC6#TRMPBF is its robust fault protection. It includes built-in hot-swap capability that allows live board insertion without disrupting the bus communication and under-voltage lockout (UVLO) for enhanced system reliability. The device also has a strong drive capability, providing up to 10mA of output drive, which is more than sufficient for most I2C bus applications.

In summary, the LTC4311CSC6#TRMPBF from Linear Technology is a valuable addition to any I2C bus system, offering improved signal integrity, extended bus length, and increased device count support. Its compact form factor, wide voltage range, and advanced features make it an excellent choice for designers looking to optimize their I2C bus systems for performance and reliability.
