Category Integrated Circuits(ICs)
Family PMIC - Hot Swap Controllers
Manufacturer Linear Technology
Win Source Part Number 303446-LTC4210-1CS6
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LTC4210-1CS6 CAD Model

Description

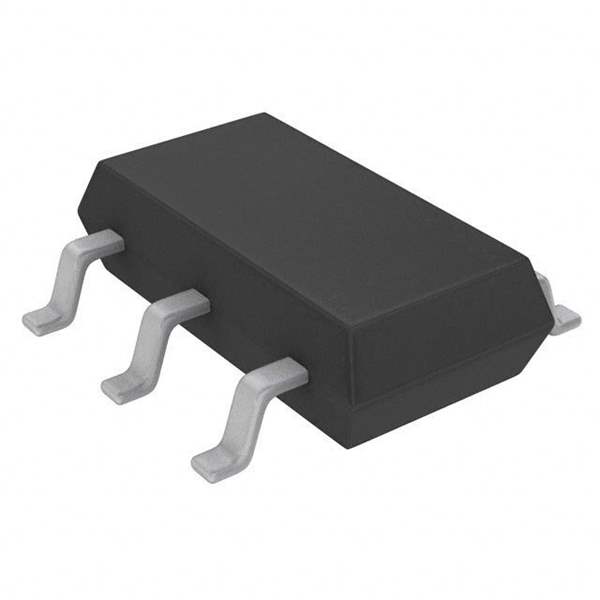

Linear Technology LTC4210-1CS6 Hot Swap Controller

The LTC4210-1CS6 from Linear Technology is a sophisticated hot swap controller designed to enable safe board insertion and removal from a live backplane. This compact, integrated circuit is housed in a 6-lead SOT-23 package, making it an ideal choice for space-constrained applications where board space is at a premium.

With its ability to control the power supply to electronic components, the LTC4210-1CS6 ensures that the insertion or removal of boards does not cause glitches on the power supply rail, thereby protecting both the backplane and the cards from damage. This is particularly crucial in systems where reliability and uptime are paramount, such as servers, data centers, and telecommunications equipment.

The LTC4210-1CS6 offers a range of features to ensure the smooth operation of the hot swap process. It includes an adjustable overcurrent protection that allows the user to set the current limit threshold to match the requirements of the specific application. This is achieved through an external sense resistor which informs the controller of the precise current flowing through the circuit.

In addition to overcurrent protection, the device also provides a controlled ramp-up of the supply voltage to the load, which minimizes inrush current and reduces the likelihood of system voltage droop. The LTC4210-1CS6 also incorporates an automatic retry feature, which ensures that if a fault condition occurs, the controller will attempt to re-establish the connection after a safe interval, thereby providing an additional layer of reliability.

For enhanced system management, the LTC4210-1CS6 includes a status flag output that can be used to signal a microcontroller or other monitoring device in the event of a fault condition. This allows for immediate action to be taken to address the issue, further enhancing system stability and protection.

Overall, the LTC4210-1CS6 is a robust and reliable solution for hot swap applications, offering protection and control in a compact form factor. Its advanced features ensure that electronic systems can maintain continuous operation even as components are added or removed, making it a critical component for high-availability systems.
