Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Linear Technology/Analog Devices
Packaging Tube
Status Obsolete
Type Hot Swap Controller
Internal Switch(s) No
Applications General Purpose
Features Auto Retry, UVLO
Programmable Features Circuit Breaker, Fault Timeout, Slew Rate
Supply Voltage (V) 2.7V ~ 12V
Temperature Range - Operating 0°C ~ 70°C
Supply Current 1.6mA
Mounting Style SMD
Manufacturer Package 16-WFDFN Exposed Pad
Supplier Device Package 16-DFN (5x3)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1209040-LTC4217CDHC
Manufacturer Homepage www.linear.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LTC4217CDHC CAD Model

Description

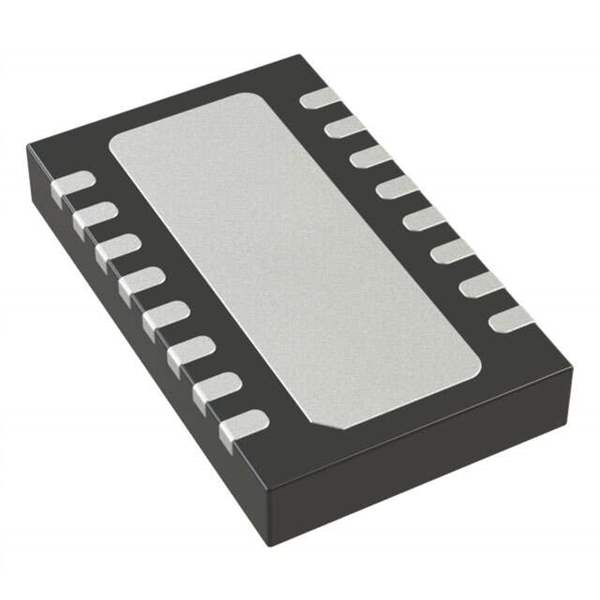

Linear Technology LTC4217CDHC - Hot Swap Controller

The LTC4217CDHC from Linear Technology is a sophisticated integrated circuit designed to manage the safe insertion and removal of electronic boards from a live backplane. This hot swap controller allows a board to be safely hot-swapped - that is, inserted or removed from a system without the need to power down the entire system or disrupt its operation. The LTC4217CDHC is housed in a compact DHC package, making it suitable for space-constrained applications.

One of the primary features of the LTC4217CDHC is its ability to control the inrush current during board insertion, preventing glitches on the supply rail and protecting both the backplane and the card from the effects of large transient currents. This is achieved through an adjustable soft-start function, which gradually ramps up the card's supply voltage, limiting the inrush current to a safe level.

The device operates over a wide voltage range, typically from 2.9V to 26.5V, which makes it versatile for various applications including servers, network routers, and other hot-swappable systems. It includes overcurrent protection, which is implemented by sensing the voltage across a sense resistor and responding to excessive power draw by turning off the external N-channel MOSFET to prevent damage.

Furthermore, the LTC4217CDHC offers additional protection features such as overvoltage, undervoltage, and thermal shutdown, ensuring the integrity of the system under various fault conditions. The status of these conditions can be monitored through the FAULT output signal, enabling system response to potential issues.

For design flexibility, the LTC4217CDHC includes a TIMER pin that allows the user to set the fault timer period. This enables customization of the controller's response time to overcurrent events based on specific application requirements.

In conclusion, the LTC4217CDHC from Linear Technology is a reliable and flexible solution for hot swap applications. Its comprehensive protection features and adjustable settings make it an ideal choice for managing power distribution and ensuring the safe operation of hot-swappable systems.
