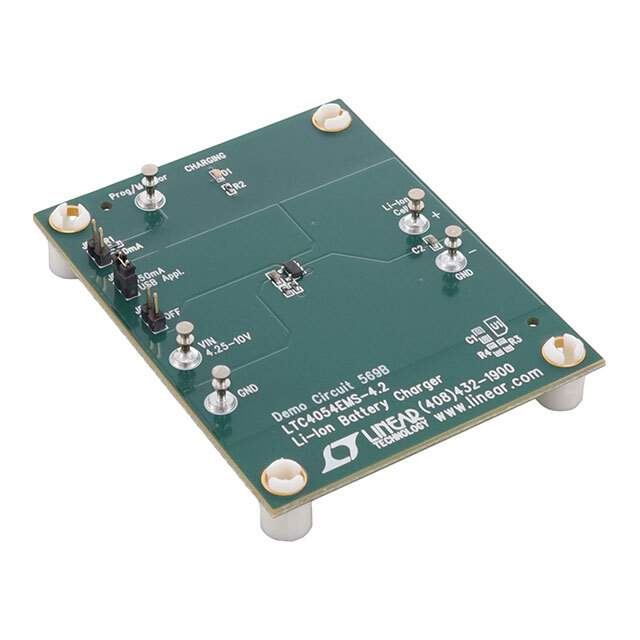

The LTC4054-4.2 is a sophisticated and compact single-cell lithium-ion battery charger produced by Linear Technology, designed to provide efficient charging solutions for portable electronic devices. This advanced charger IC is specifically tailored for a 4.2V lithium-ion battery, ensuring that the battery is charged correctly and safely to its full capacity.

Key Features:

• Charging Voltage: The LTC4054-4.2 is designed to charge single-cell lithium-ion batteries to a final float voltage of 4.2V with high accuracy, which is critical for maximizing battery life and performance.
• Programmable Charge Current: Users can set the charge current from 1mA to 800mA by selecting the appropriate resistor value connected to the PROG pin. This feature allows for flexibility in charging different battery capacities and sizes.
• Automatic Recharge: The device includes an auto-recharge feature that initiates a new charging cycle if the battery voltage falls below an internal threshold, ensuring the battery remains fully charged.
• Thermal Regulation: To protect the battery and the charger from overheating, the LTC4054-4.2 incorporates thermal regulation that reduces charge current if the die temperature exceeds a preset threshold.
• Charge Termination: The IC terminates the charge cycle when the charge current drops below a user-set level after the final float voltage is reached, indicating a full battery.
• Charge Status Output: A status output pin (CHRG) allows for a simple LED interface to indicate the charging process or completion, providing a visual indication to the user.
• No External MOSFET, Sense Resistor, or Blocking Diode Required: The LTC4054-4.2 simplifies the design by eliminating the need for these external components, thereby reducing system complexity and cost.

Applications:

The LTC4054-4.2 is ideal for a variety of portable devices where efficient charging is essential. Common applications include:

• Cellular Telephones
• Digital Cameras
• MP3 Players
• USB-Powered Devices
• Handheld Instruments

This charger IC is not only versatile but also comes in a small package, making it an excellent choice for space-constrained applications. The LTC4054-4.2 is a reliable and user-friendly solution for modern portable electronics that require efficient power management and long battery life.
