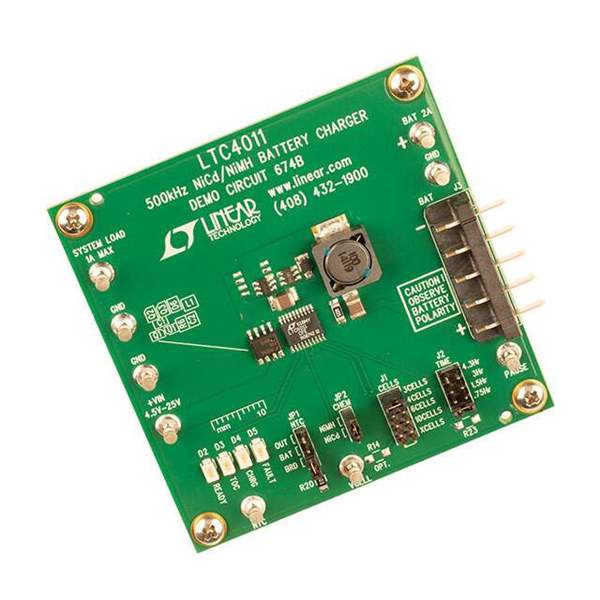

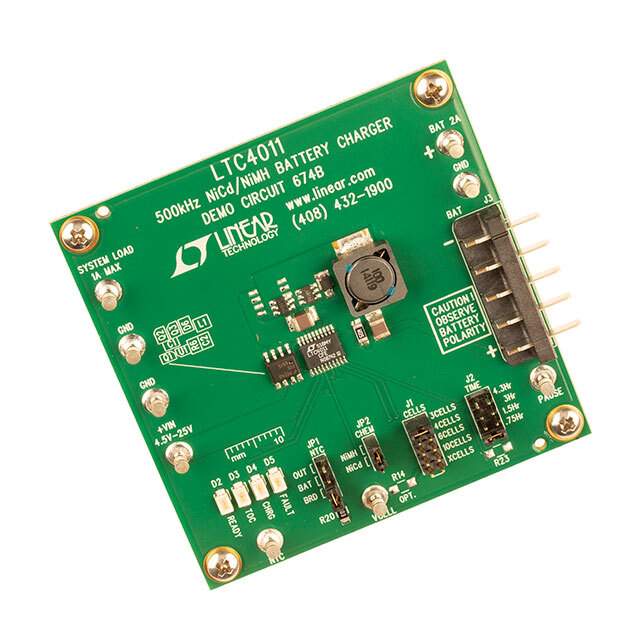

LTC4011EFE High Efficiency NiMH/NiCd Charger

The LTC4011EFE is a high-efficiency, fast-charge controller for Nickel Metal Hydride (NiMH) and Nickel Cadmium (NiCd) batteries, designed and manufactured by Linear Technology. It is an advanced charging solution that combines precision, flexibility, and robustness to meet the requirements of a wide range of battery-powered applications.

Key Features:

• High Efficiency: The LTC4011EFE features a switch-mode design that can achieve up to 94% efficiency, which is significantly higher than traditional linear chargers. This not only saves energy but also reduces heat generation during the charging process.
• Wide Input Voltage Range: With an input voltage range of 4.5V to 34V, the LTC4011EFE can accommodate a variety of power sources, including wall adapters and automotive power systems.
• Advanced Charge Algorithms: The charger incorporates intelligent algorithms to optimize the charging cycle for NiMH and NiCd batteries, maximizing battery life and performance.
• Programmable Charge Current: Users can set the charge current from 0.5A to 4A via an external resistor, providing flexibility for different battery capacities and charging requirements.
• Automatic Recharge: After a full charge cycle, the LTC4011EFE automatically initiates a new charge cycle if the battery voltage falls below a preset threshold, ensuring that the battery remains fully charged.
• Multiple Safety Features: The device includes safety features such as battery temperature sensing, which prevents charging if the battery temperature is outside a specified range, and a programmable timer to terminate the charge cycle.
• Charge Status Indicators: The LTC4011EFE provides a charge status output that can drive an LED to indicate charging in progress, charge complete, and fault conditions.

Applications:

The LTC4011EFE is suitable for a variety of applications where efficient and reliable battery charging is essential. It can be used in portable consumer electronics, power tools, backup battery systems, and any other application that utilizes NiMH or NiCd rechargeable batteries.

Package and Quality:

The LTC4011EFE is offered in a 20-pin TSSOP package with an exposed pad for enhanced thermal performance. Linear Technology ensures high-quality standards, with rigorous testing and quality control measures in place for all their products.

Overall, the LTC4011EFE from Linear Technology stands out as a high-performance, feature-rich charging solution that can significantly improve the operation and longevity of NiMH and NiCd battery packs.
