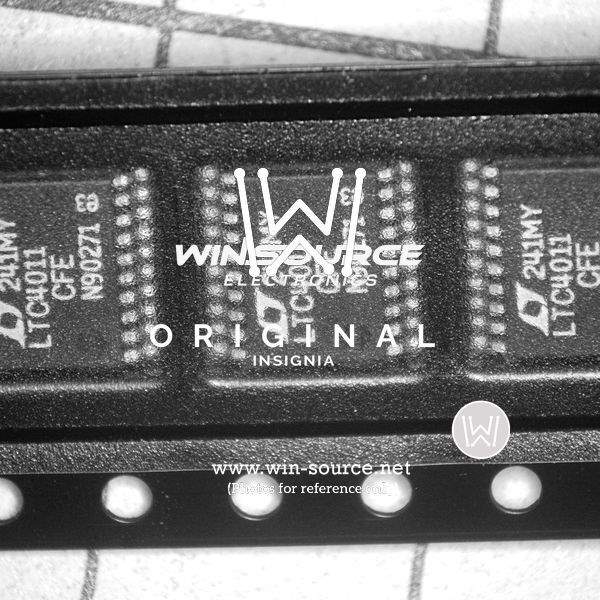

Linear Technology LTC4011CFE Overview

The LTC4011CFE is a versatile and powerful battery charger integrated circuit (IC) designed by Linear Technology, a company known for its high-performance analog integrated circuits. This advanced IC is specifically tailored for charging nickel-based batteries, including both Nickel Metal Hydride (NiMH) and Nickel Cadmium (NiCd) chemistries. It is an ideal solution for a wide range of applications such as portable devices, backup battery systems, and any electronic equipment requiring reliable battery management.

At the heart of the LTC4011CFE is its ability to provide a fast charge in a compact, thermally efficient package. The IC comes in a 16-lead TSSOP package with an exposed pad for enhanced thermal performance. It supports a wide input voltage range from 10V to 28V, making it flexible for various power supply scenarios. The LTC4011CFE also integrates a programmable charge current that can be set up to 4A, ensuring that batteries can be charged quickly and efficiently.

One of the key features of the LTC4011CFE is its intelligent charging algorithm. The IC utilizes a negative delta V (ΔV) charge termination technique, which is critical for preventing overcharging and ensuring the longevity of nickel-based batteries. Additionally, it includes a programmable charge timer for added safety, terminating the charge process if the battery does not reach full charge within a predetermined time frame.

The LTC4011CFE also boasts an automatic recharge feature, which initiates a new charging cycle if the battery voltage falls below a user-defined threshold, keeping batteries fully charged without user intervention. Moreover, it has a temperature-compensated charge voltage that protects the battery from being charged at inappropriate temperatures, further enhancing battery safety and lifespan.

For system monitoring and control, the LTC4011CFE provides status indication through its CHARGE_STATUS pin, which can be used to drive an LED or interface with a microcontroller. This allows for easy monitoring of the charging process and integration into more complex systems.

In summary, the LTC4011CFE from Linear Technology is a highly sophisticated battery charger IC, offering precision, flexibility, and safety for charging NiMH and NiCd batteries. It is a robust solution for designers looking to implement a reliable battery charging system in their products.
